SPECIFICATIONS
AC Current: 600uA/6000uA/60mA/600mA/10A
AC Voltage: 600mV/6V/60V/600V/1000V
Auto Power Off: yes
Back Light: yes
Battery Included: Yes
Brand Name: ANENG
Certification: CE
Choice: yes
Color: Red/Green
Continuity: yes
DC Current: 600uA/6000uA/60mA/600mA/10A
DC Voltage: 600mV/6V/60V/600V/1000V
DIY Supplies: Electrical
Date Hold: yes
Dimensions: 26 x 17 x 6 cm
Diode: yes
Display Type: Digital Display
Display(LCD): 19999 counts
High-concerned chemical: None
Is Smart Device: No
Low Battery Alect: yes
MAX/MIN: yes
Measuring Capacitance Range: 10nF/100nF/1uF/10uF/100uF/1000uF/10000uF
Measuring Inductance Range: no
Measuring Resistance Range: 600/6k /60k /600k /6M /60M
Meterial: ABS
Model: AN870
Model Number: 870 Digital Multimeter
NCV: yes
Operating Mode: Manual Range
Operating Temperature: 0 – 40 ℃
Origin: Mainland China
Ranging: Auto/Manual
Relative Measurement: yes
Ture RMS: yes
Update Rate: 3Time/Second
Smart Multimeter Digital Profesional 19999 Counts AC Voltage Tester Current NCV Capacitance Resistance Ohm Test Tool
Feature:
A. Introduction

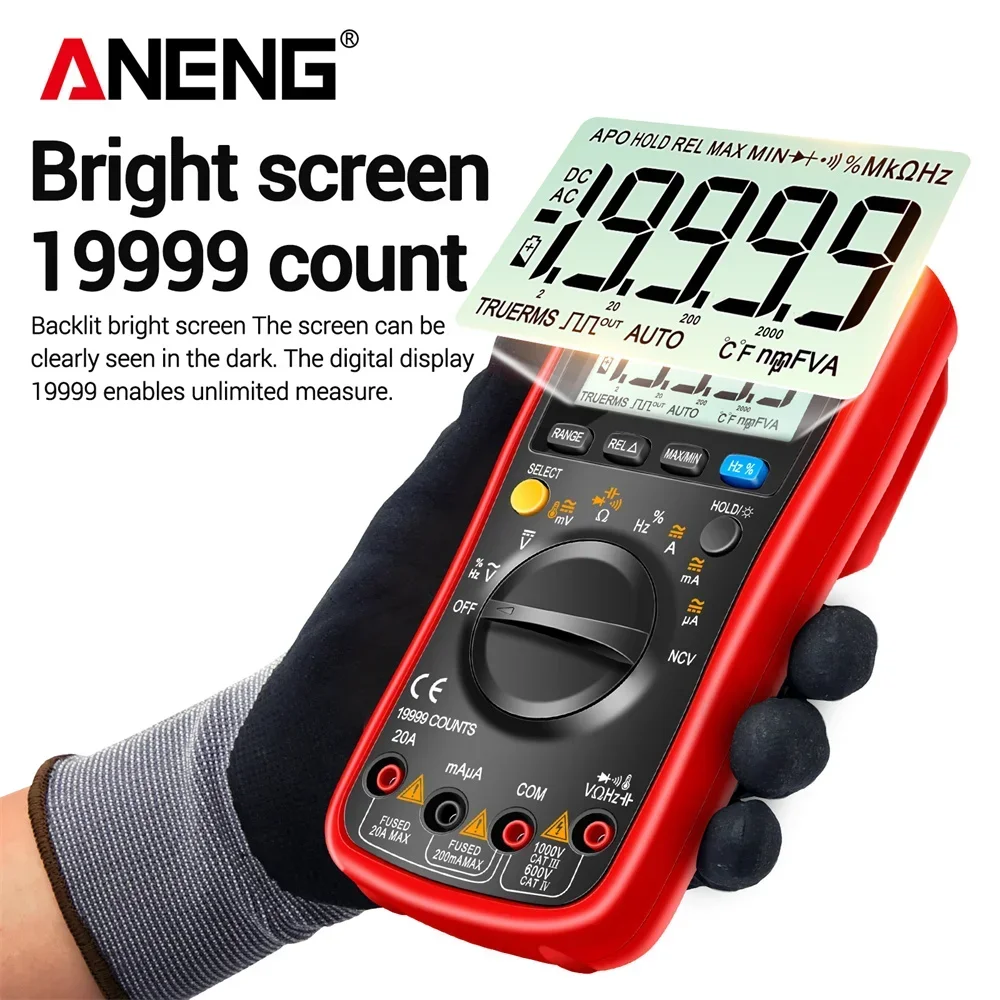

This product is a battery-powered, true-rms, auto-ranging digital multimeter with a 19999 LCD display and a backlight.
B. Specification
|
Brand Name |
ANENG |
Model |
AN870 |
|
Display(LCD) |
19999counts |
Ranging |
Auto/Manual |
|
Meterial |
ABS |
Update Rate |
3Time/Second |
|
Ture RMS |
yes |
Back Light |
yes |
|
Date Hold |
yes |
Relative Measurement |
yes |
|
MAX/MIN |
yes |
Low Battery Alect |
yes |
|
Auto Power Off |
yes |
Diode |
yes |
|
Continuity |
yes |
NCV |
yes |
|
Function |
Range |
Accuracy |
|
DC Voltage |
19.999mV/199.99mV/1.9999V/19.999V/199.99V/1000V |
±(0.05％+ 3) |
|
AC Voltage |
19.999mV/199.99mV/1.9999V/19.999V/199.99V/750V |
±(0.3％+ 3) |
|
DC Current |
1.9999A /19.999A / 19.999mA /199.99mA /99.99μA /1999.9μA |
±(0.5%+3) |
|
AC Current |
1.9999A /19.999A / 19.999mA /199.99mA /99.99μA /1999.9μA |
±(0.8%+3) |
|
Resistance |
199.99Ω |
±(0.5%+3) |
|
1.9999kΩ/19.999kΩ/199.99kΩ |
±(0.2%+3) |
|
|
1.9999MΩ/19.999MΩ |
±(1.0%+3) |
|
|
199.99MΩ |
±(5.0%+5) |
|
|
Capacitance |
9.999nF |
±(5.0%+20) |
|
99.99nF/999.9nF/9.999uF/99.99uF/999.9uF |
±(2.0%+5) |
|
|
9.999mF |
±(5.0%+5) |
|
|
Frequency |
99.99Hz/ 999.9Hz/ 9.999kHz/ 99.99kHz/ 999.9kHz/ 9.999MHz |
±(1.0%+2) |
|
Duty Cycle |
1%~99% |
±(1.0%+2) |

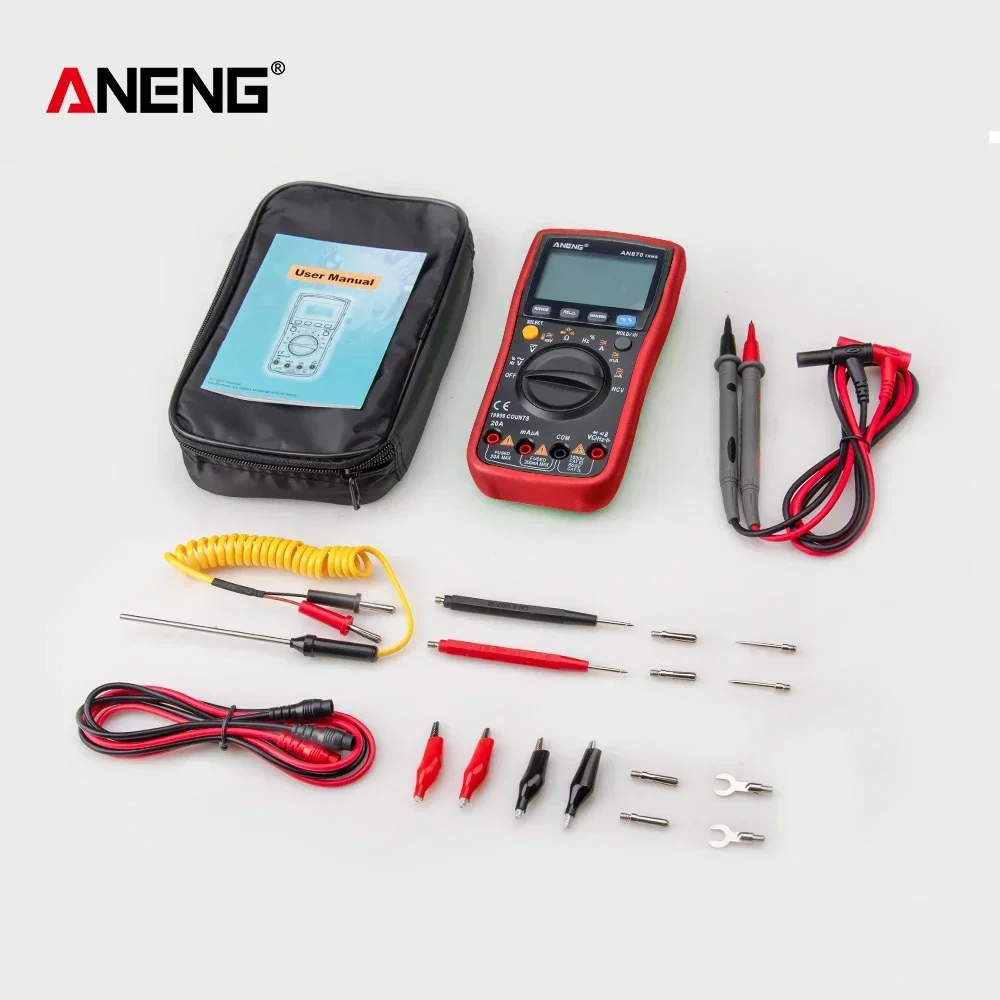

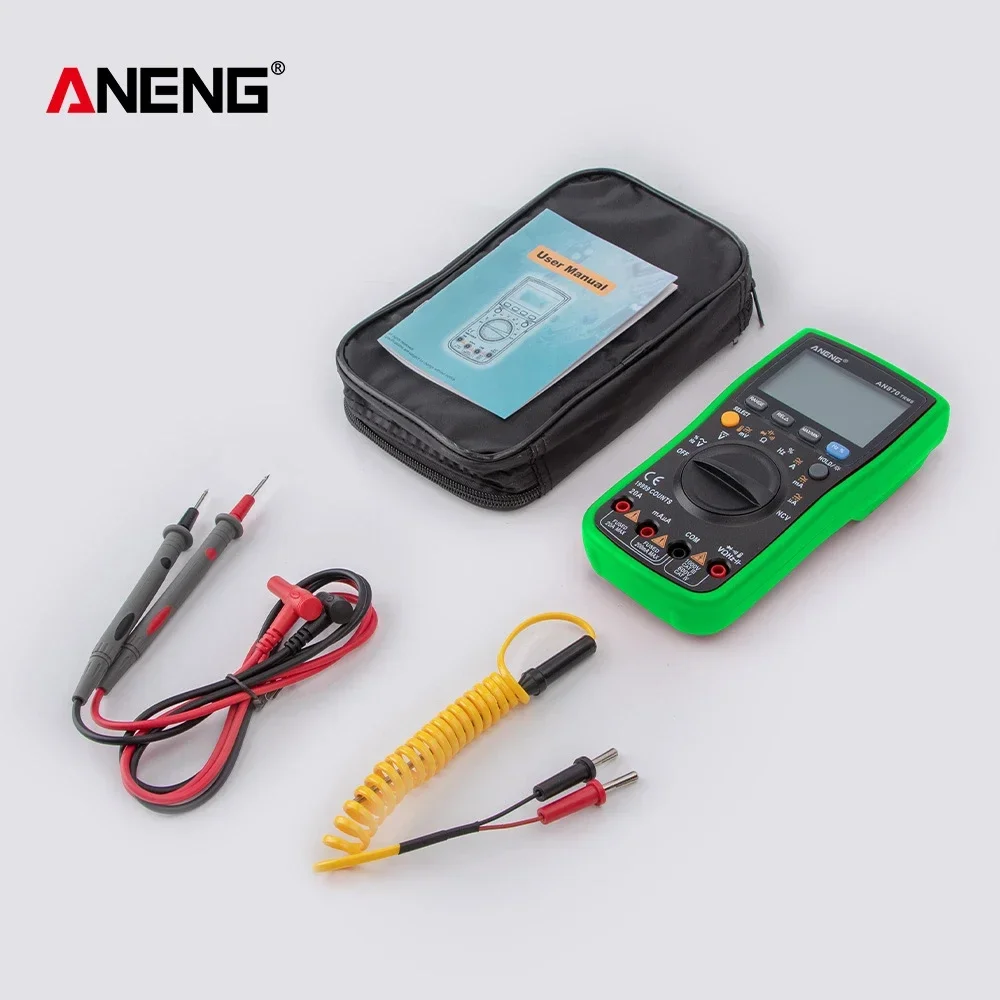

Packaging:(Not including battery)
as the picture showed
Warning:
1. Do NOT exceed the "maximum value" indicated in the Specification;
2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;
3. Do NOT use the product when the batteries or the battery cover is not placed properly;
4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.
