SPECIFICATIONS
Brand Name: TOMZN
Certification: CE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: None
Is Smart Device: No

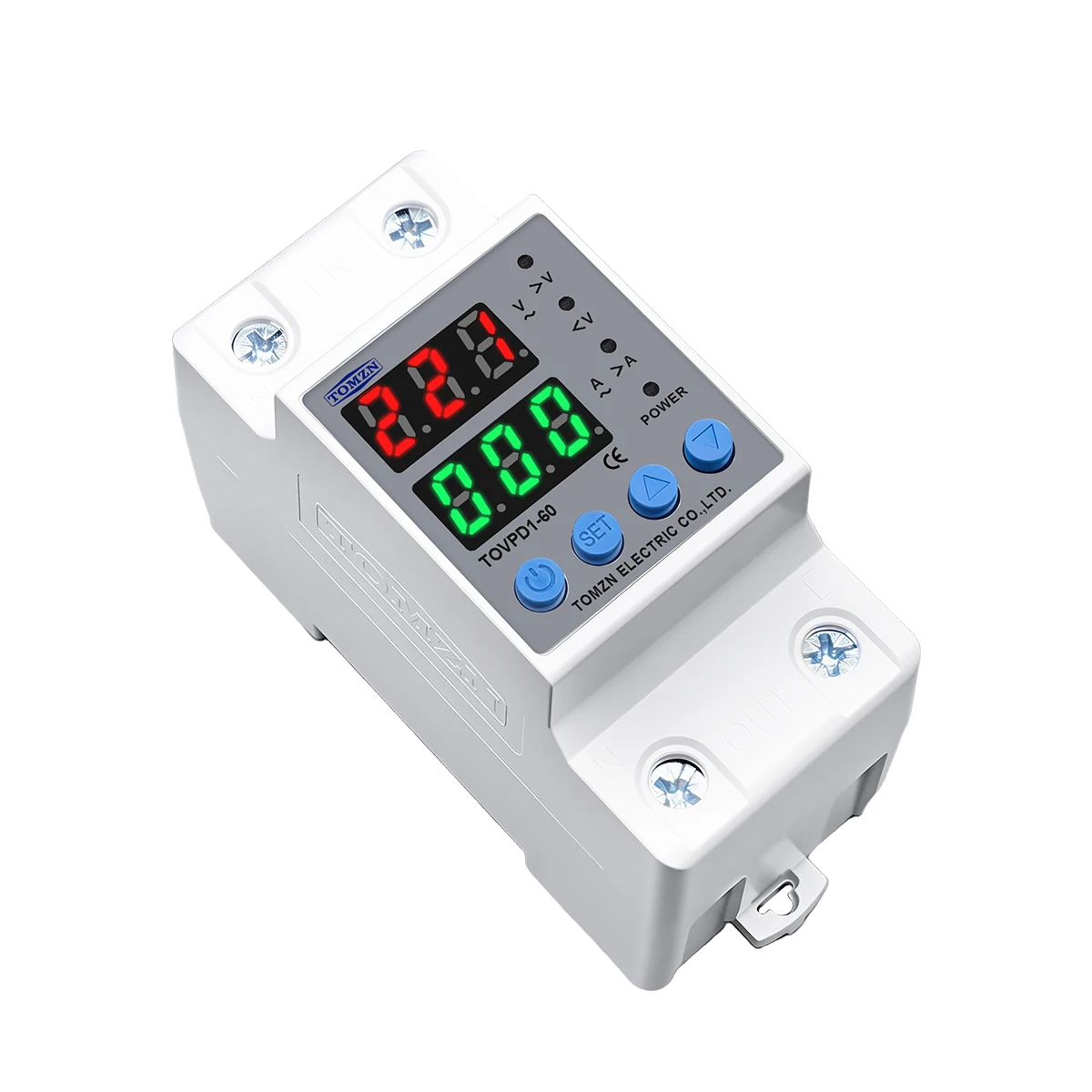

Model Number: TOVPD1-60-VA
Origin: Mainland China
Type: Voltage protector,Voltage relay
is_customized: Yes
semi_Choice: yes

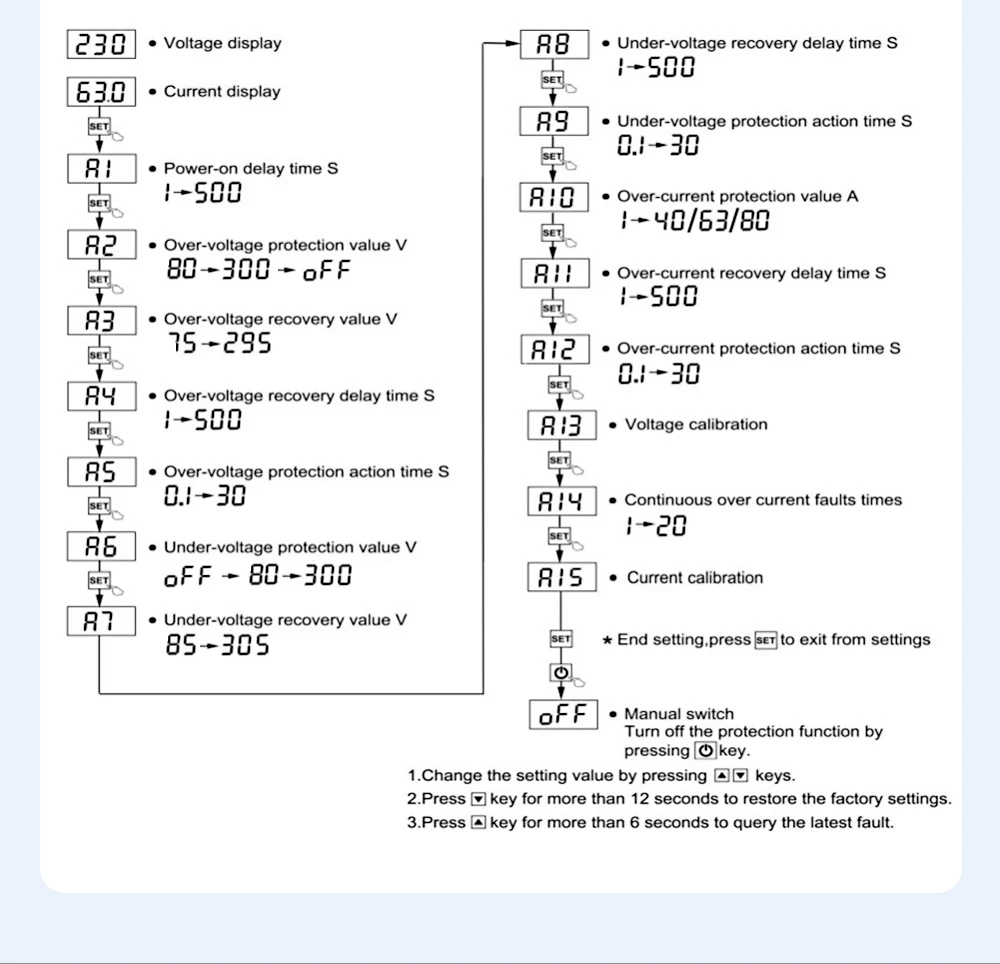

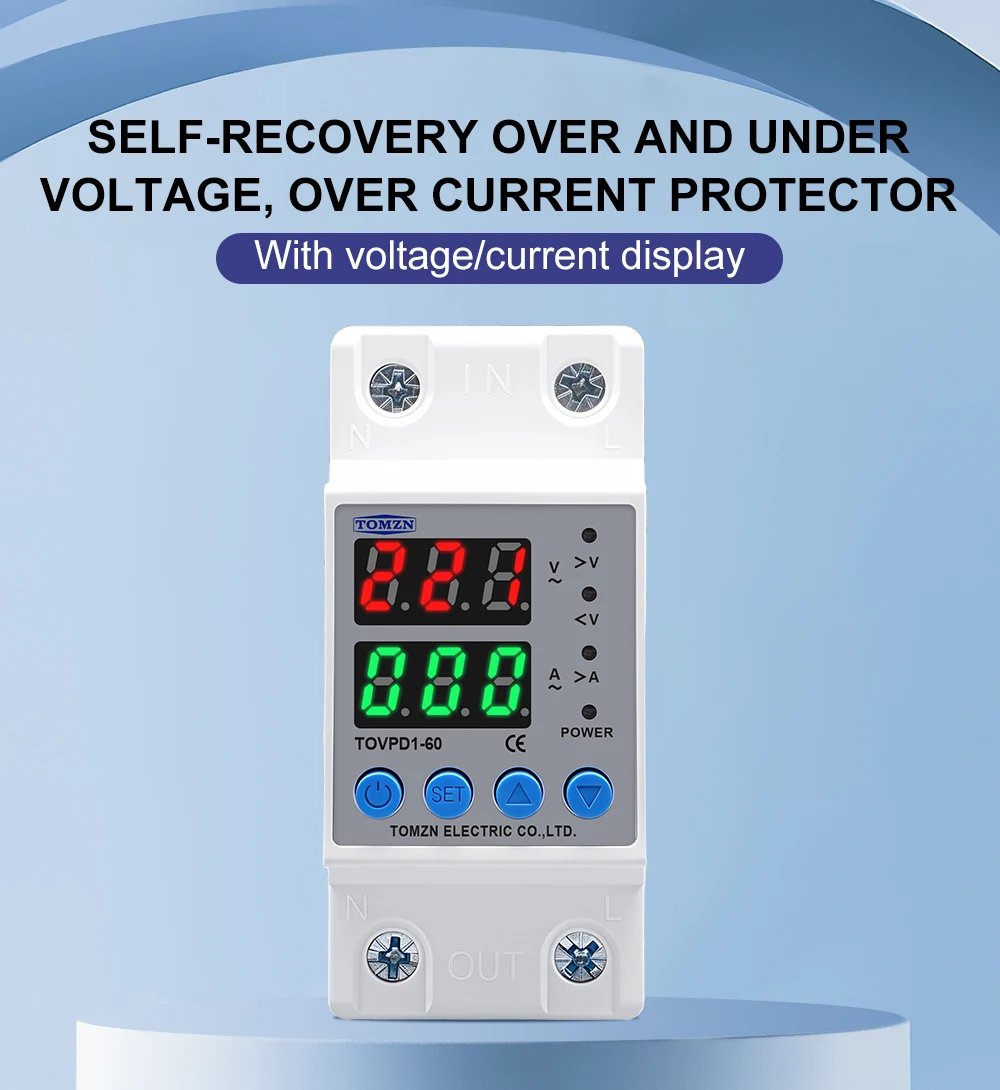

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery

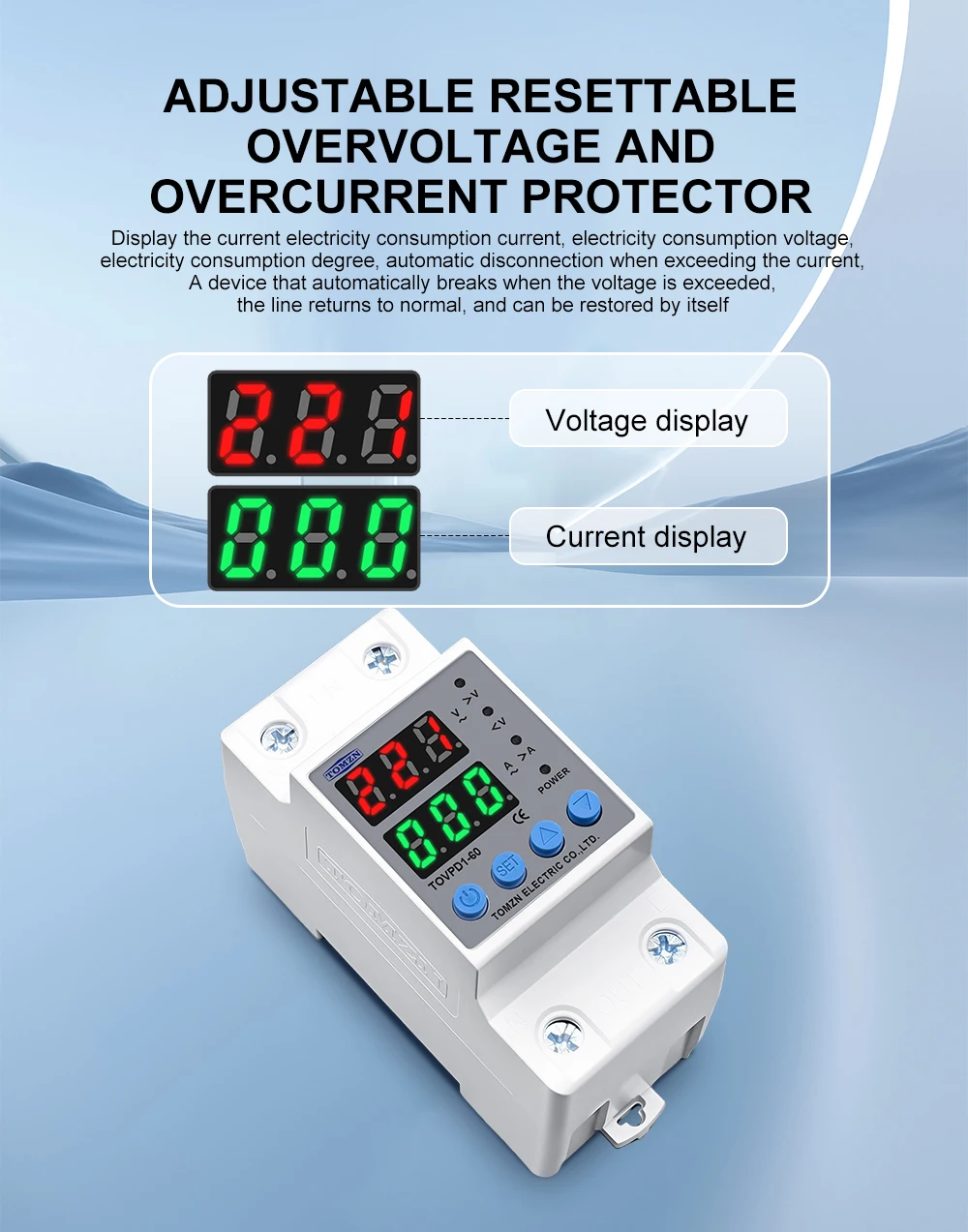

5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration A13

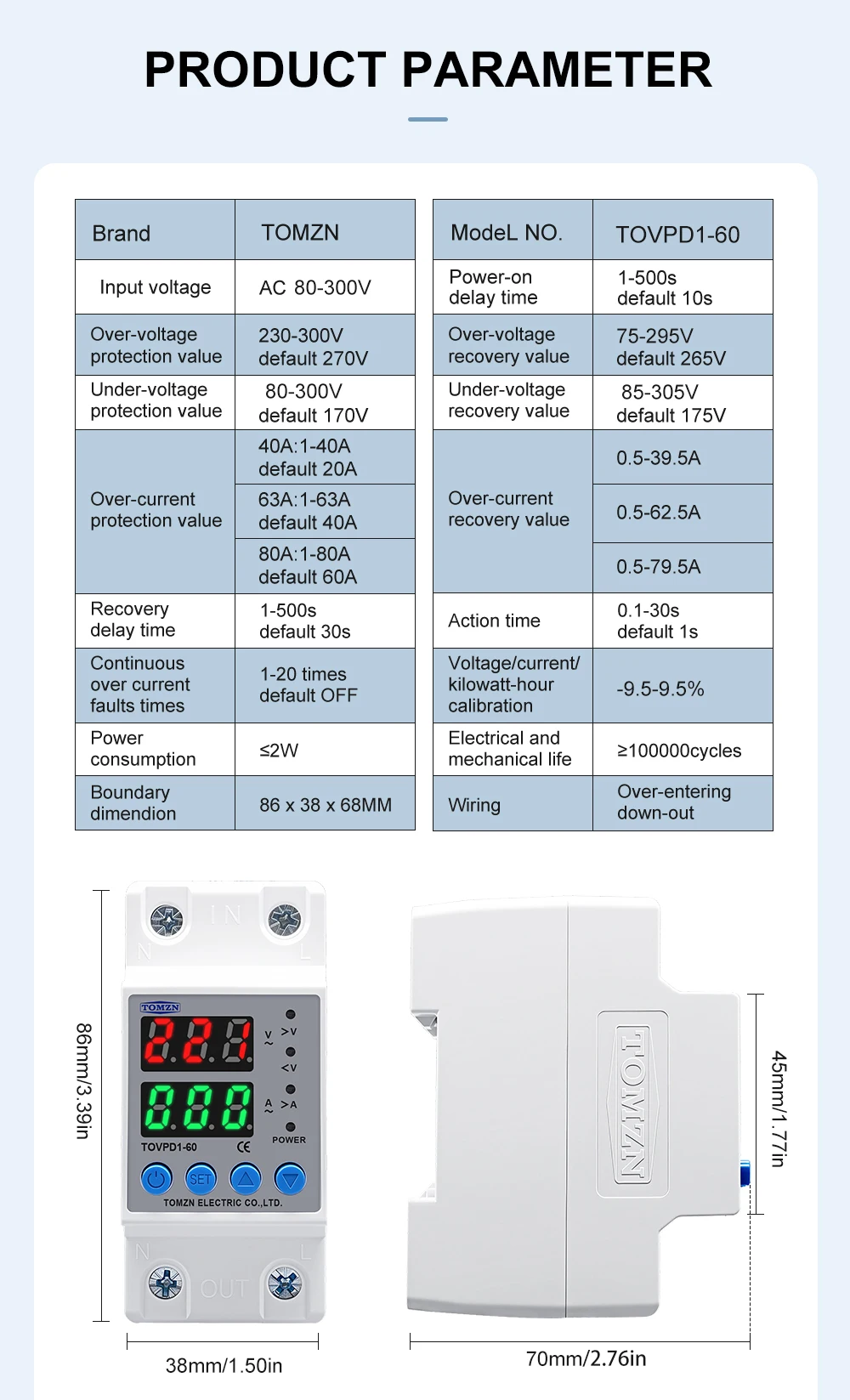

Product Parameters:Â Â
1.Model number:TOVPD1-60-VA
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40AÂ Adjustable(default:40A)
                                   1~63A Adjustable(default:63A)
4.Over-voltage protection value range:230V~300V (default:270V)
Over-voltage recovery voltage range:225V–295V(default:250V)
  Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V–210V (default:170V)
Under-voltage recovery voltage range:145V–215V (default:190V)
  Under-voltage protection action time:0.1s~30s(default:0.5s)
  Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A)1-63AÂ (default:40A)
  Over-current action range:0.1~30 second (default:0.5s)
Over-currentrecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times

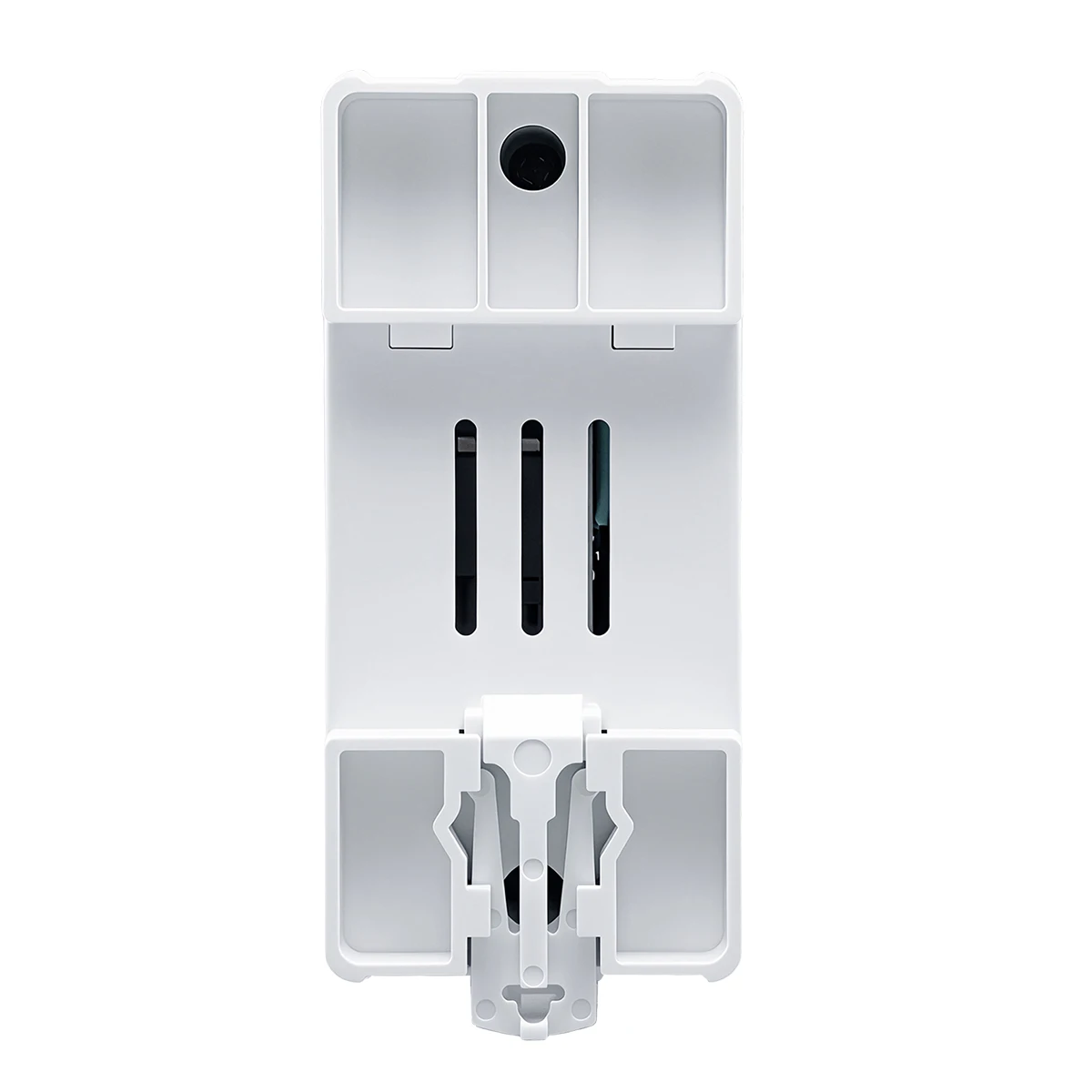

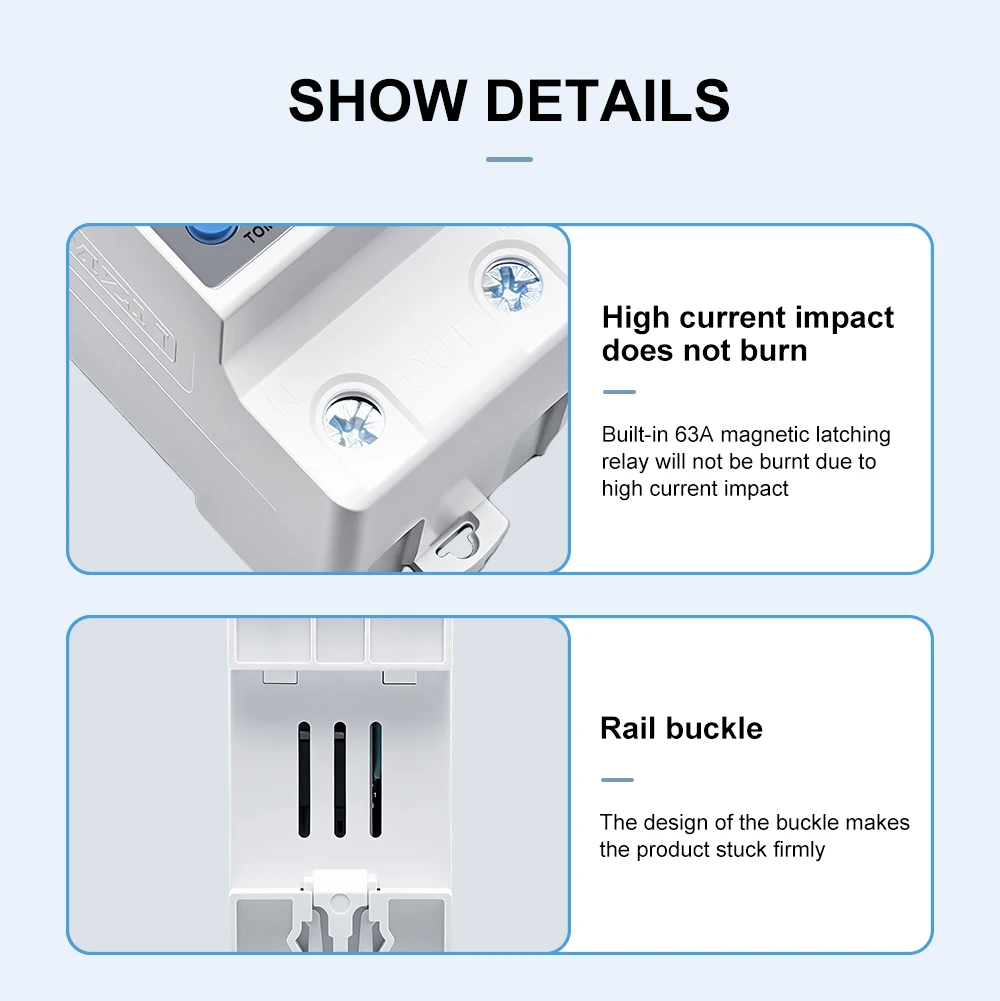

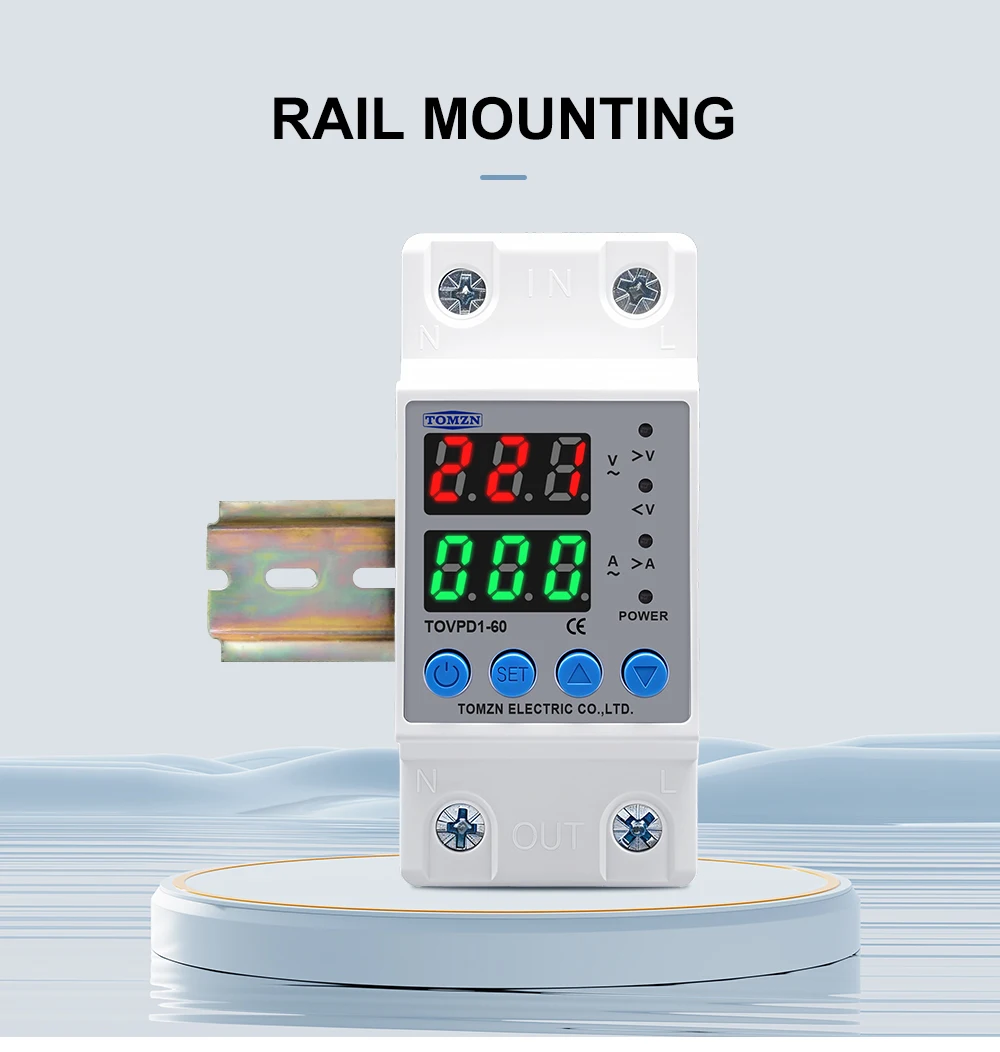

11.Installation:35mm DIN rail
