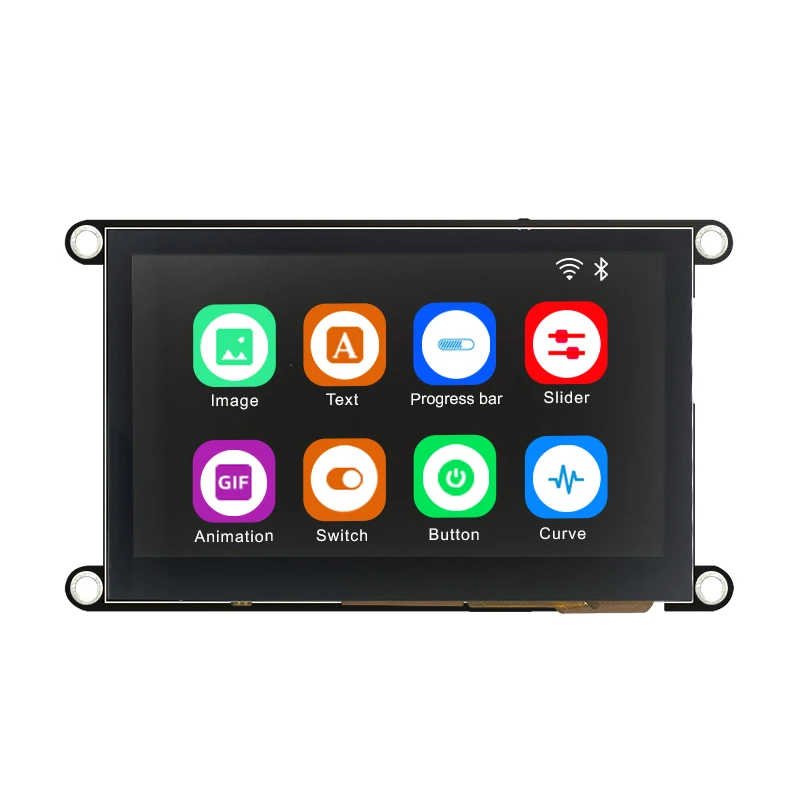

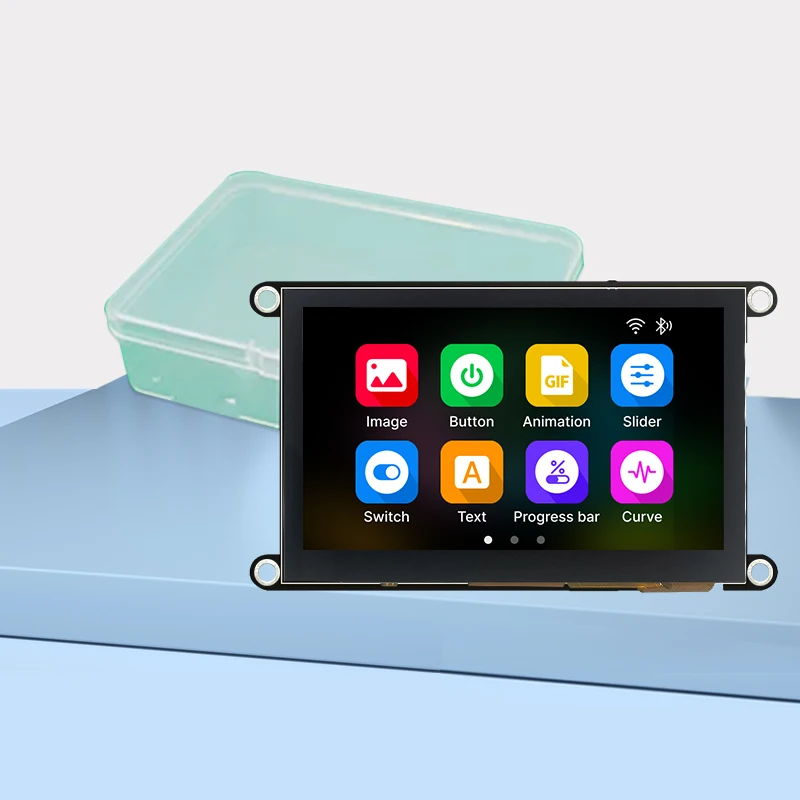

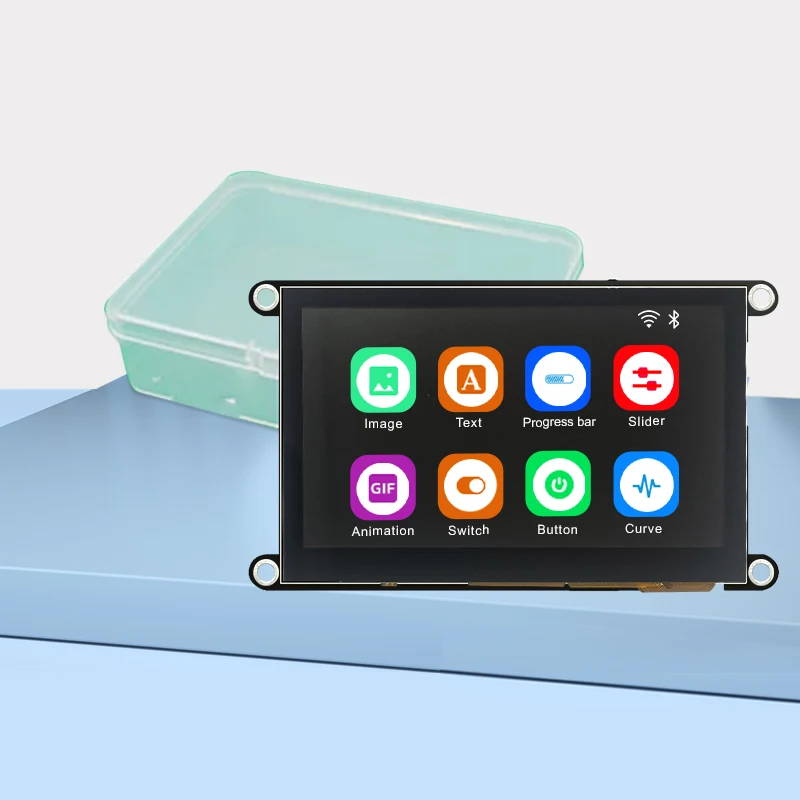

Guition ESP32-S3 8M PSRAM 4M FLASH 4.3-inch IPS 480*272 LCD display module with WIFI and Bluetooth
Guition ESP32-S3 8M PSRAM 4M FLASH 4.3-inch IPS 480*272 LCD display module with WIFI and Bluetooth - Image 2
Guition ESP32-S3 8M PSRAM 4M FLASH 4.3-inch IPS 480*272 LCD display module with WIFI and Bluetooth - Image 3
Guition ESP32-S3 8M PSRAM 4M FLASH 4.3-inch IPS 480*272 LCD display module with WIFI and Bluetooth - Image 4
Guition ESP32-S3 8M PSRAM 4M FLASH 4.3-inch IPS 480*272 LCD display module with WIFI and Bluetooth - Image 5
Guition ESP32-S3 8M PSRAM 4M FLASH 4.3-inch IPS 480*272 LCD display module with WIFI and Bluetooth - Image 6
Guition ESP32-S3 8M PSRAM 4M FLASH 4.3-inch IPS 480*272 LCD display module with WIFI and Bluetooth - Image 7
Guition ESP32-S3 8M PSRAM 4M FLASH 4.3-inch IPS 480*272 LCD display module with WIFI and Bluetooth - Image 8

Guition ESP32-S3 8M PSRAM 4M FLASH 4.3-inch IPS 480*272 LCD display module with WIFI and Bluetooth

Price range: $52.95 through $57.95

SKU: d823p2cj8m00008m8fq0 Category:

SPECIFICATIONS


Brand Name: GUITION

Choice: yes

Display Mode: 300:1

High-concerned chemical: None

Model Number: JC4827W543

Origin: Mainland China

Resolution: 480×272

is_customized: Yes

semi_Choice: yes


Data download link:

http://pan.jczn1688.com/s/zyojx8

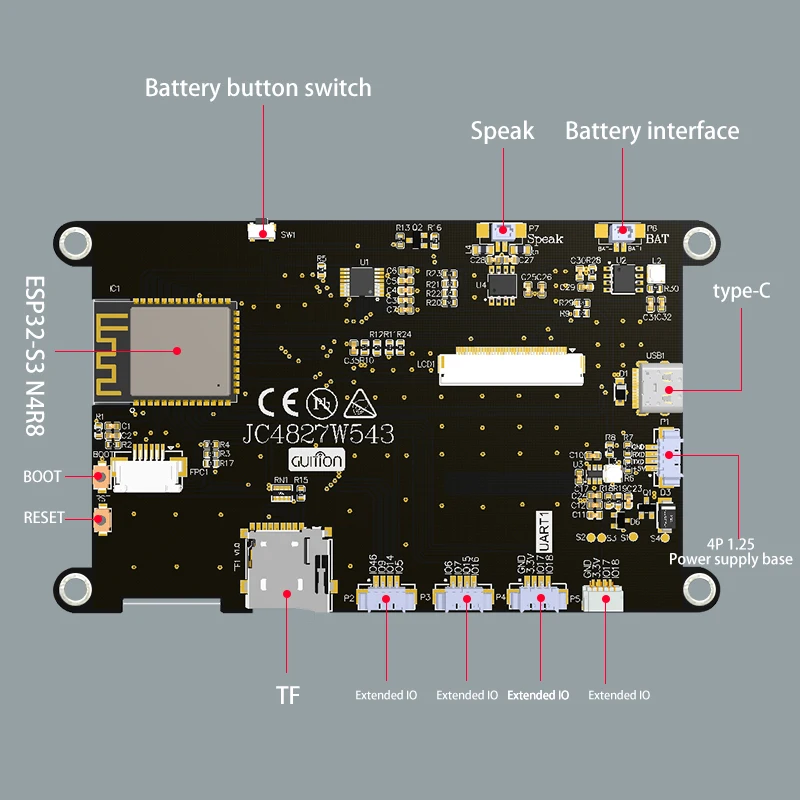

Hardware Feature of JC4827W543C/R_I

4.3” LCD-TFT HMI Capacitive touch or Resistance touch display module

Supports WiFi and Bluetooth

Support lithium battery power supply

Capacitive touch or Resistance touch

480 x 272 screen resolution

RGB 65K true-to-life colours

Onboard 240MHz LX6 MCU

520K Byte RAM

8 MB PSRAM

4 MB Flash memory

JST1.25 4 Pins (+5V, TX, RX, GND) TTL serial interface

Color

IPS Resistive touch, IPS Capacitive touch
Ships From

China Mainland
