SPECIFICATIONS
AC Current: 6000mA/10A
AC Voltage: 6V/60V/600V/750V
Auto power off: YES
Battery Included: Yes
Brand Name: ANENG
Buzzer: YES
Certification: CE
Choice: yes
DC Current: 6000mA/10A
DC Voltage: 6V/60V/600V/1000V
DIY Supplies: Electrical
Data retention: YES
Dimensions: /
Diode: YES
Display Type: Digital Display
Duty cycle%: YES
Flashlight lighting: YES
High-concerned chemical: None
Is Smart Device: No
Material: ABS/Silicone
Maximum count: 6000 Counts
Measuring Capacitance Range: 60nF/60nF/6uF/60uF/600uF/6mF/60mF/100mF
Measuring Inductance Range: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz
Measuring Resistance Range: 600/6k/60k/600k/6M/60M
Model Number: ANENG 683 Digital Multimeter

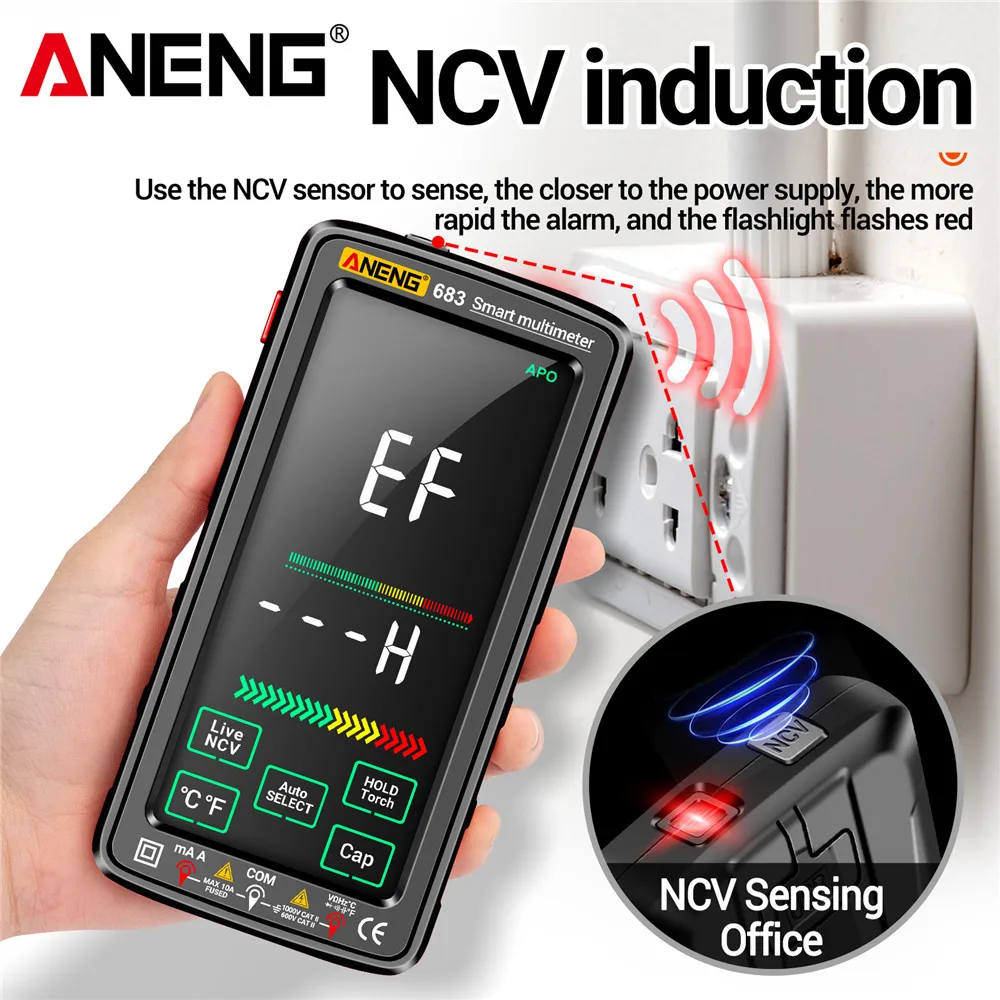

NCV induction: YES
Operating Mode: Auto Range
Operating Temperature: 0 – 40 ℃
Origin: Mainland China
Silicone sheath: YES

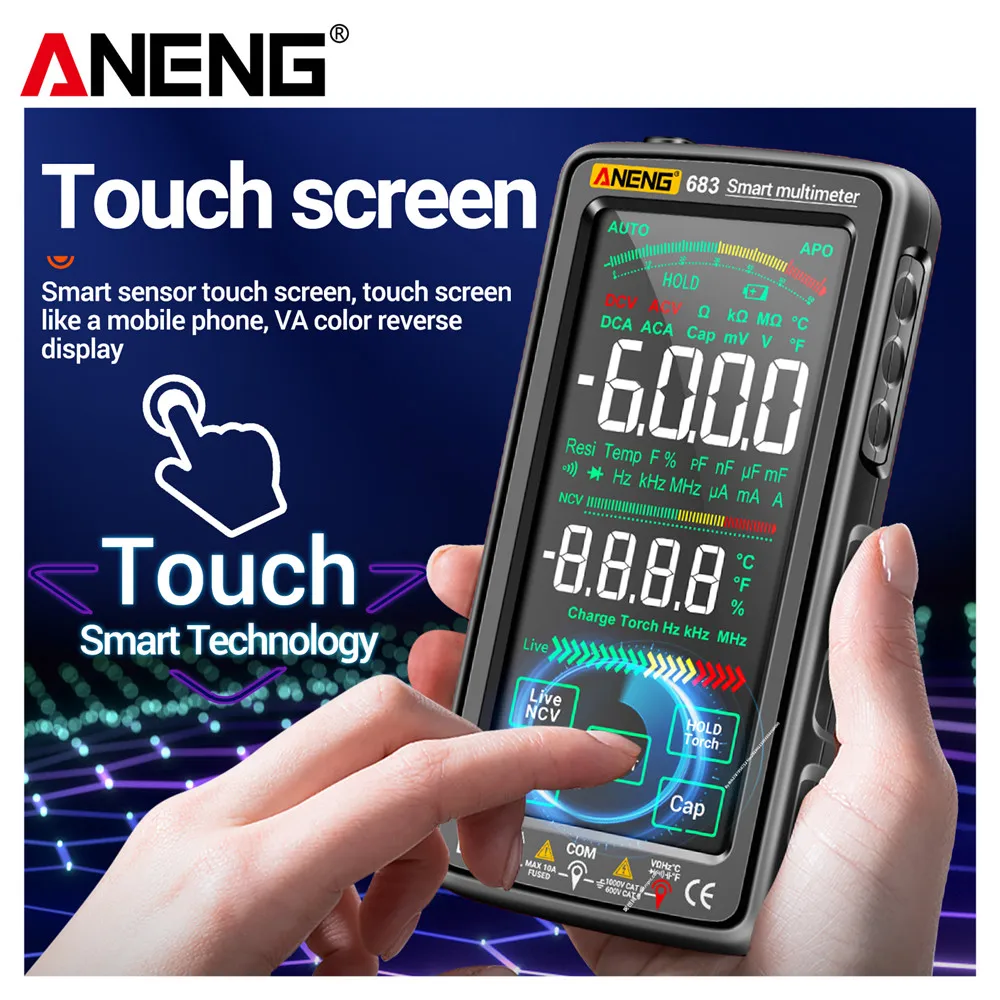

Touch screen: YES

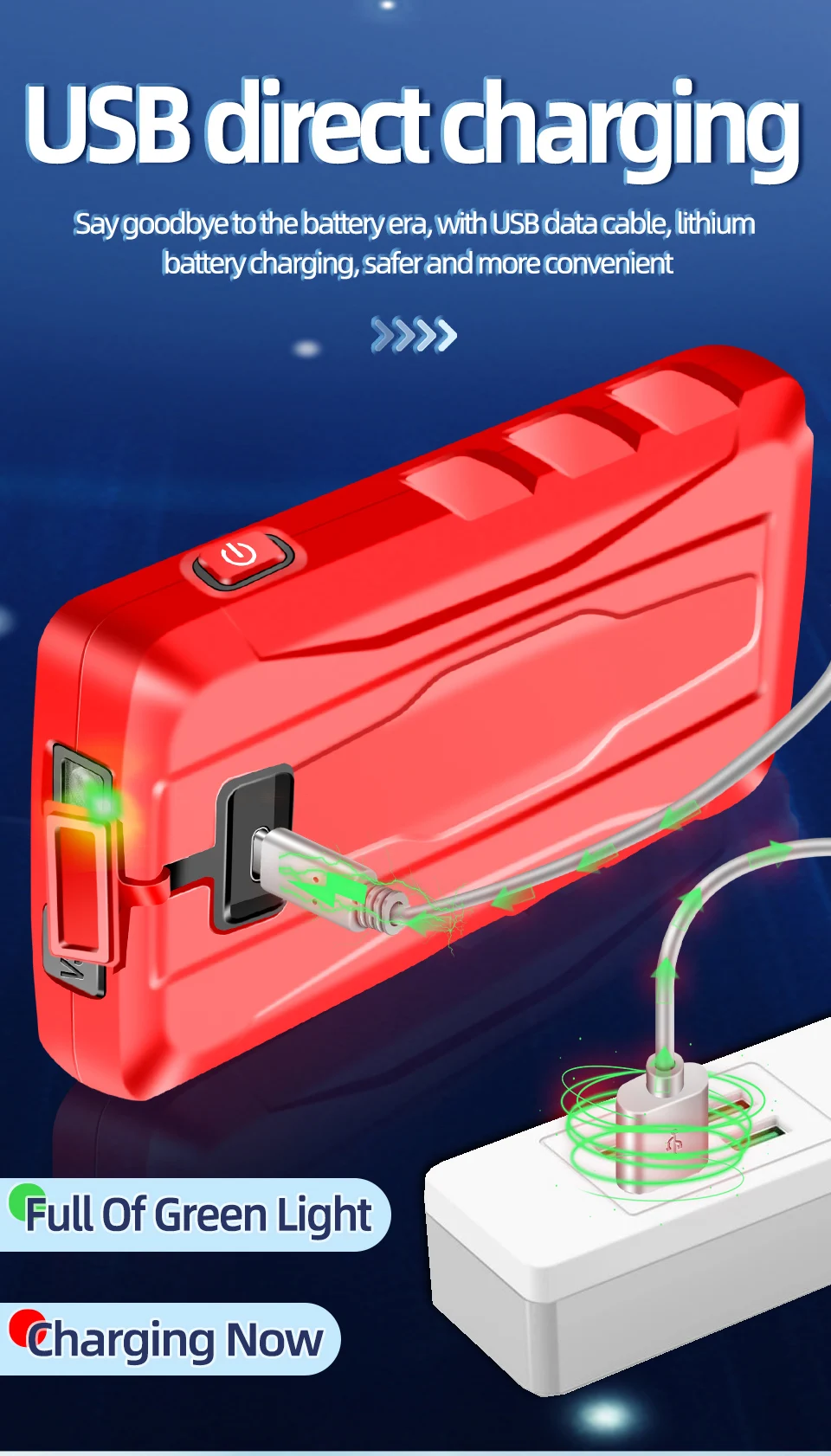

USB charging: YES
VA color display: YES

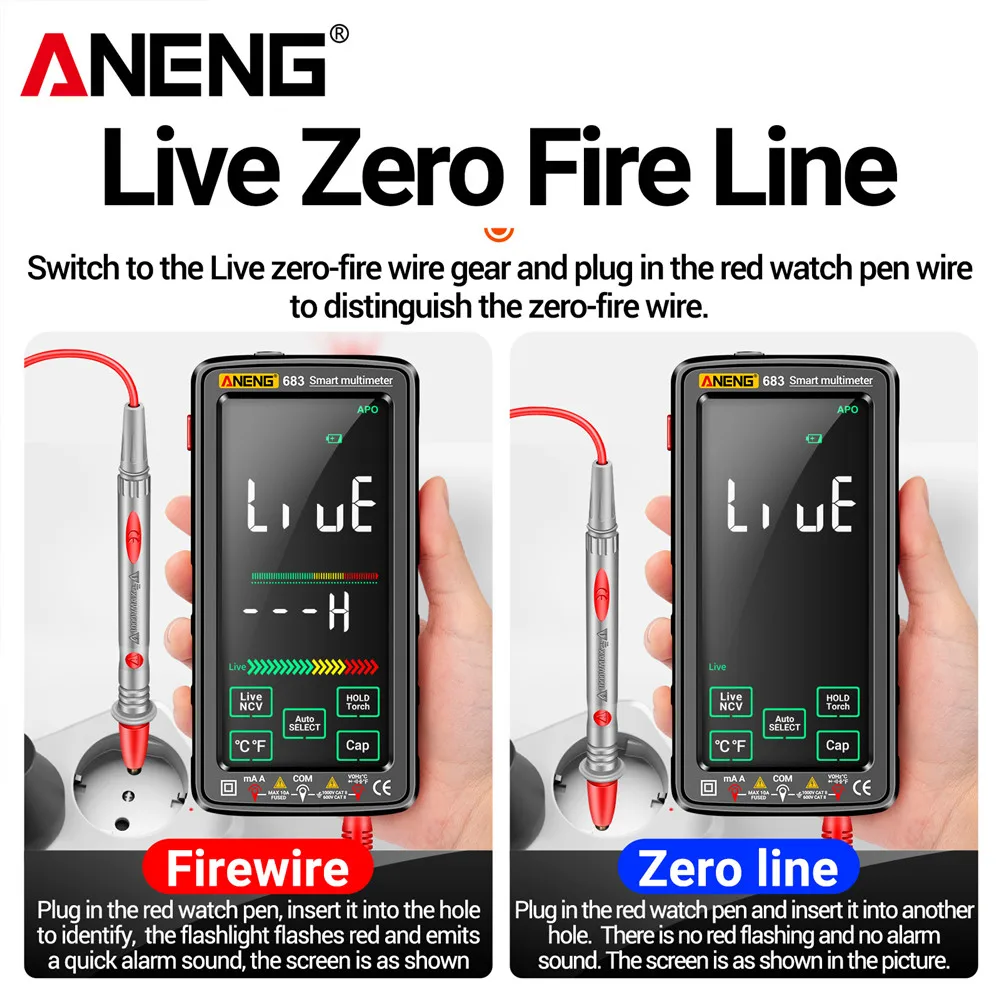

Zero Fire Line: YES

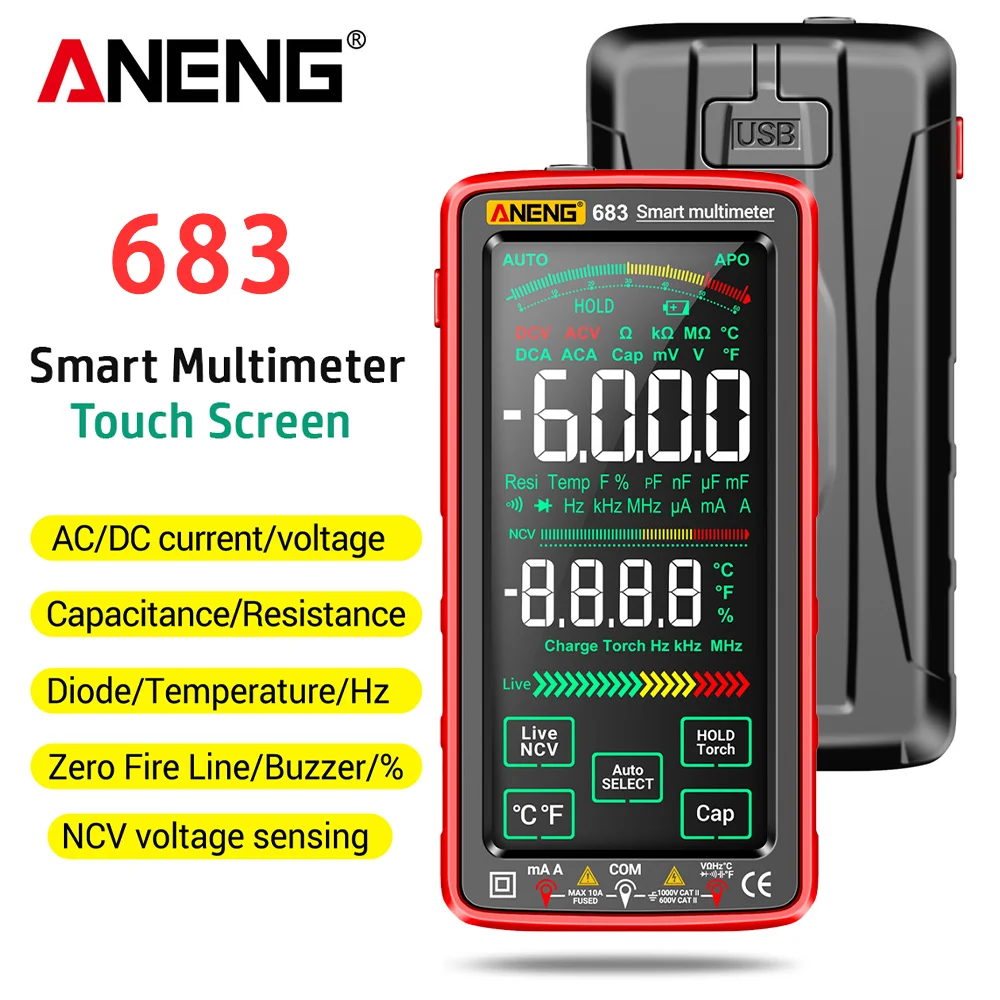

ANENG 683 Smart Multimeter High-end Touch 6000 Counts Multimetro Test Rechargeable Multitester AC/DC Voltage Tester Current Tool
Attention, please!
When clicking "Auto SELECT", the product defaults to manual selection mode. You can click to switch and select the product function, and the corresponding function symbol will appear on the screen.
If you want to switch the automatic selection function, click switch multiple times until the product screen displays the letter "AUTO", which means you have entered the automatic selection function mode!
Introduce:
This device is a 3 5/6 digital multimeter with stable performance and realiable quality.The meter adopts LCD display screen with analog bar display.Users in the process of use,truly achieve continuous power operation,do not need to turn the dial to select functions.According to the input ac/DC voltage/resistance will be automatically identified and measured.

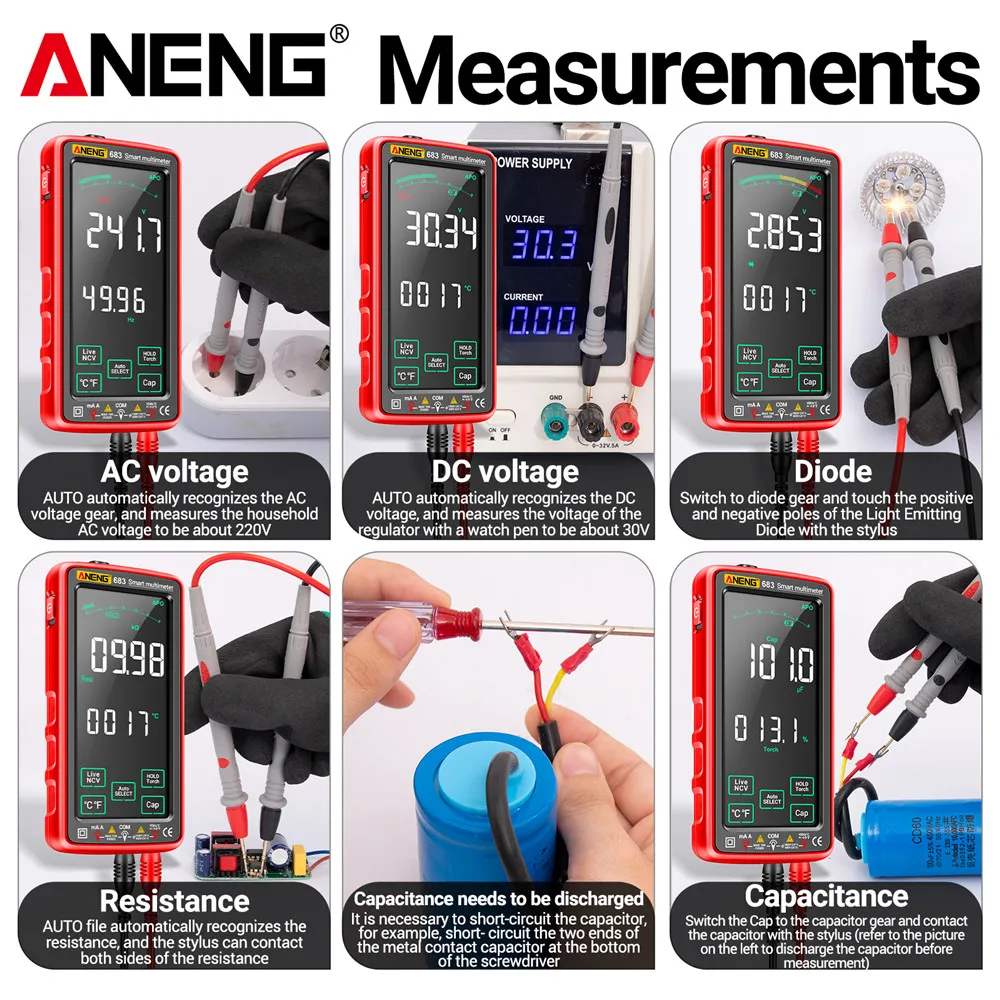

It can be used to measure DC voltage,AC voltage sine RMS,DC Current,AC current sine RMS,resistance,capacitance,live-line indication,duty ratio,diode on/off test,symbol unit ,data hold and automatic power off.
The meter is equipped with a high-capacity rechargeable batteries with full function and accurate measurement.The multimeter is an ideal tools for laboratory,factory,radio enthusiasts and household.
Summary:
Manual Range and Auto Range
Full range overloaded protectection
The maximum voltage allowed between the measuring terminal and ground:1000V DC or 750V AC
Fuse Protection:uA/mAÂ
Display:6000 Counts LCD monitor with analog bar
Battery Type:3.7V/2800mA rechargeable battery

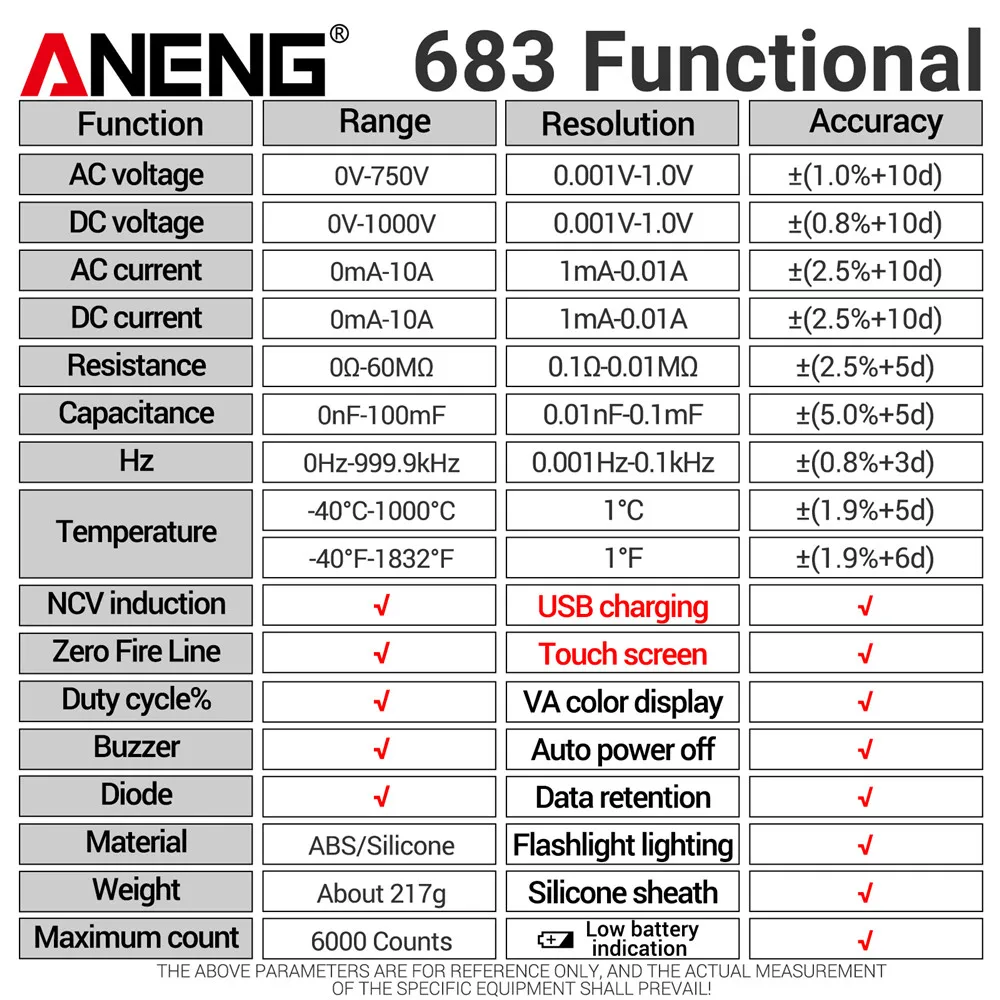

Specification:
DC Voltage:
|
Measuring Range |
Resolution |
Accuracy |
|
6V/60V |
0.001V/0.01V |
+-(0.5% readings+3digits) |
|
600V/1000V |
0.1V/1.0V |
+-(0.8% readings+10digits) |
AC Voltage:
|
Measuring Range |
Resolution |
Accuracy |
|
6V/60V |
0.001V/0.01V |
+-(0.8% readings+3digits) |
|
600V/750V |
0.1V/1.0V |
+-(1.0% readings+10digits) |
AC and AC Current
|
Measuring Range |
Resolution |
Accuracy |
|
6000mA |
1mA |
+-(1.0% readings+5digits ) |
|
10A |
0.01A |
+-(2.5% readings+10digits ) |
Resistance
|
Measuring Range |
Resolution |
Accuracy |
|
600Ω/6kΩ/60kΩ/600kΩ |
0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ |
+-(0.8% readings+3digits) |
|
6MΩ |
0.001MΩ |
+-(1.2% readings+3digits) |
|
60MΩ |
0.01MΩ |
+-(2.5% readings+5digits) |
Capacity
|
Measuring Range |
Resolution |
Accuracy |
|
60nF/60nF/6uF/60uF/600uF/6mF |
0.01nF/0.1nF/0.001uF/0.01uF/0.1uF |
+-(4.0%Readings+20 digits) |
|
60mF |
0.01mF |
+-(5.0%Readings+5 digits) |
|
100mF |
0.1mF |
for reference |
Frequency
|
Measuring Range |
Resolution |
Accuracy |
|
9.999Hz/99.99Hz/999.9Hz |
0.001Hz/0.01Hz/0.1Hz |
+-(0.8% readings+3digits) |
|
9.999kHz/99.99kHz/999.9kHz |
0.001kHz/0.01kHz/0.1kHz |
+-(0.8% readings+3digits) |
Temperature
|
Measuring Range |
Resolution |
Accuracy |
|
-40℃-300℃ |
+-(1.0%+4d) |
1℃ |
|
301℃-1000℃ |
+-(1.9%+5d) |
1℃ |
|
-40 °F -600 °F |
+-(1.2%+6d) |
1°F |
|
601 °F -1832 °F |
+-(1.9%+6d) |
1°F |
|
Diode Test |
Yes |
Circuit on/off Test |
Yes |
|
Data Hold |
Yes |
Automatic power off |
Yes |
|
Torch |
Yes |
NCV Test |
Yes |
|
Buzzer |
Yes |
Firing line Test |
Yes |

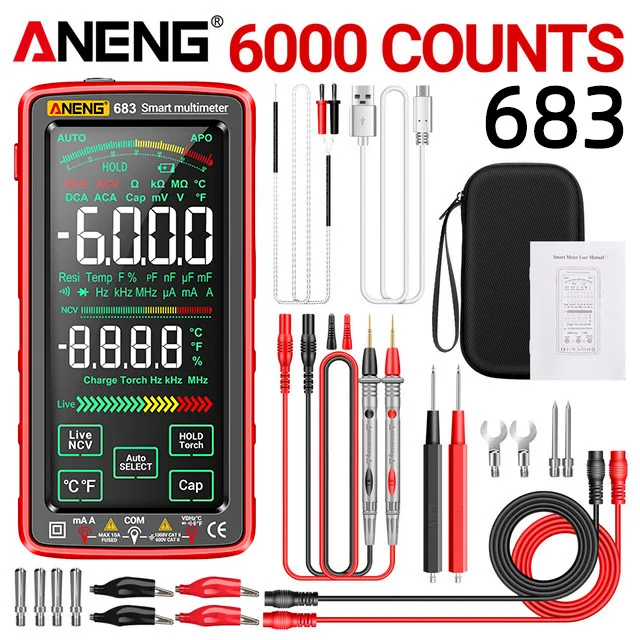

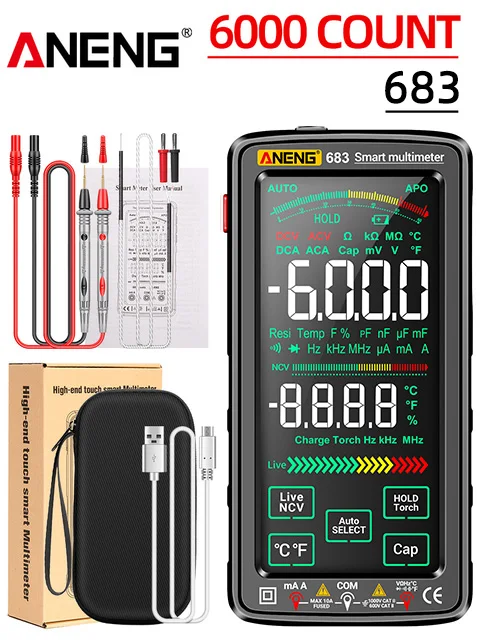

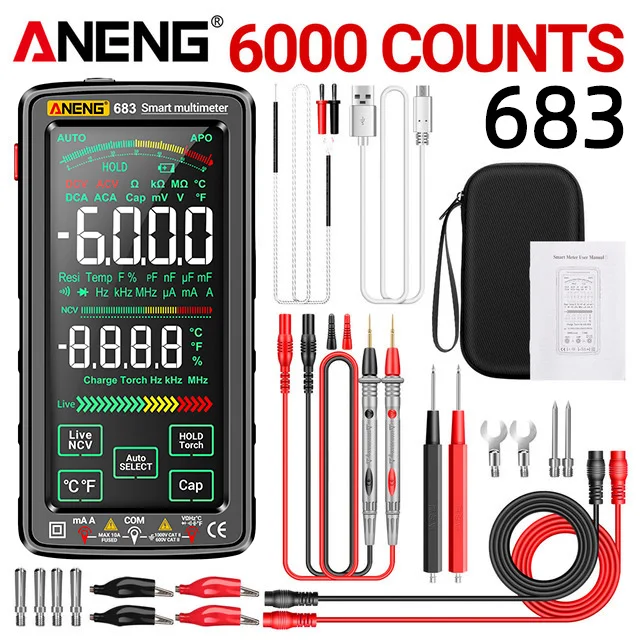

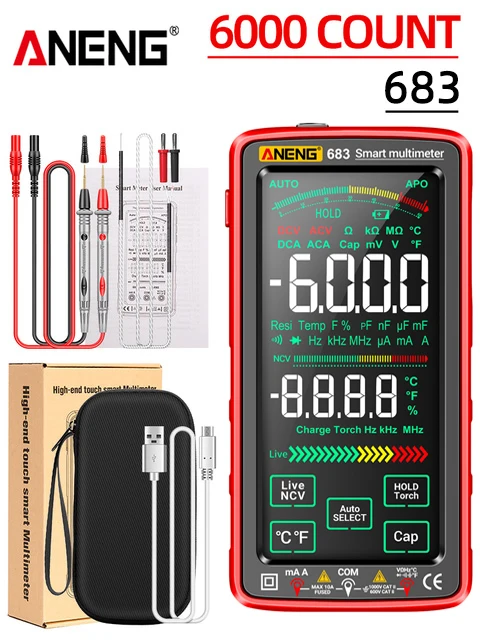

Package Included:
As the picture showed
