SPECIFICATIONS

2.4G Wi-Fi Transmission Rate: 600mbps

2.4GHz: 574Mbps

5.8GHz: 2400Mbps

Antenna: 2.3dBi/3.5dBi

Antenna Type: Fixed

Brand Name: comfast

Certification: CE,FCC

Chipset: MT7981BA+MT7976CN+GPY211

Choice: yes

Frequency: 5 GHz,2.412GHz-2.484GHz 5.180GHz-5.825GHz

Frequency Band Class: Dual-Band

High-concerned chemical: None

LAN Ports: 2

MTBF: 25000h

Origin: Mainland China

Package: Yes

Physical Port: 1*10/100/1000/2500Mbps RJ45 WAN,1*10/100/1000Mbps RJ45 LAN Port,1*RESET,1*Type-C Port,1*USB 3.0 Port

Power: 5V/3A

Power consumption: ≤13W

Recommended Uses: Home

Standards And Protocols: Wi-Fi 802.11g

Support Mesh: Support

Supports WDS: No

Supports WPS: No

Type: WireLess

WAN Ports: 2

Wireless Communication Standard: 802.11.ax

Wireless transmission rate: 3000M

With Modem Function: No

semi_Choice: yes

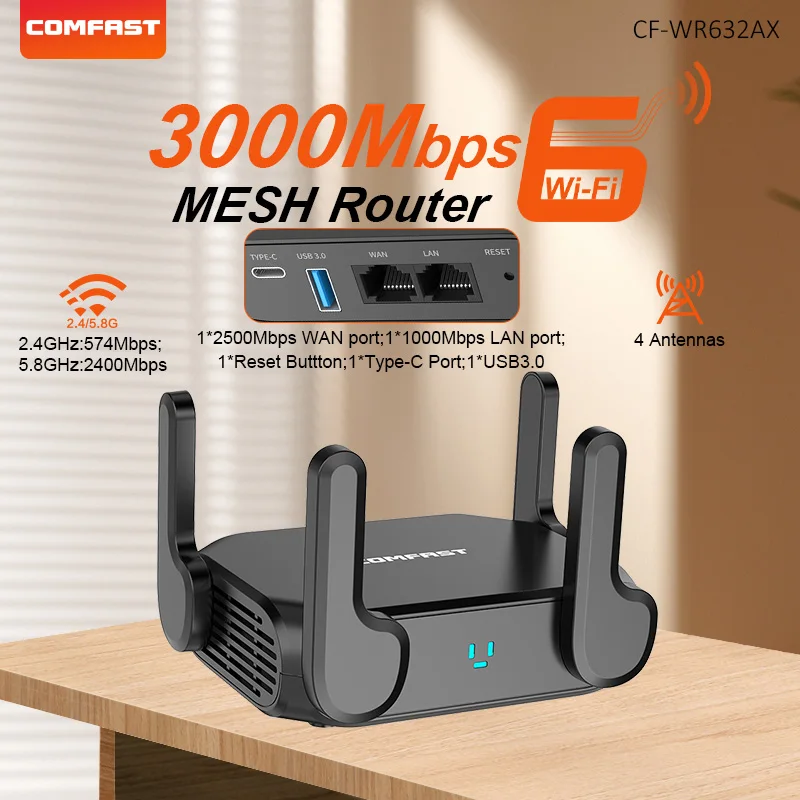

Comfast AX3000 Mesh WiFi System Whole Home Coverage Gigabit Wi-Fi Router Range Extender 4 Antennas Mesh Network Booster

This is the setting method of the MESH router. Please watch it before operating it after purchasing.

Product Overview:

CF-WR632AX is a WiFi6 smart Mesh networking router with a wireless speed of up to 3000Mbps. It has many advantages such as high bandwidth, low latency, high efficiency, and large coverage. It is equipped with MESH functions, easy networking and mini portable design, which can achieve network coverage in various home environments, office environments, and complex environments.

Features:

1.MT7981BA+MT7976CN+GPY211 brand chip solution, stable performance;

2.2.4GHz&5.8GHz dual frequency concurrent signals are more stable, efficient and anti-interference;

3.Equipped with a 2.5G network port and supports ultra-gigabit network speed;

4.3000Mbps wireless speed, high-speed transmission, and better internet experience;

5.Mesh réseau intelligent pour obtenir une couverture complète des réseaux d'appartements super-grands;

6.Four-antenne externe pour étendre la couverture du signal;

7.Three-color working indicator light: red light: no network access/green light: network access/blue light: WIFI is normal;

Specifications:

1.Brand: COMFAST
2.Model: CF-WR632AX
3.Color: Black
4.Chipset: MT7981BA+MT7976CN+GPY211
5.Wireless Standard: Supports IEEE802.11a/b/g/n/ac/ax;
6.Flash memory: DDR 512MB; FLASH 128MB;

8.Physical interface :1*10/100/2500Mbps RJ45 WAN Ethernet port; 1*10/100/1000Mbps RJ45 LAN Ethernet ports;

1*RESET button; 1*Type-C Power interface;1*USB3.0 Port;
9.Wireless speed: 2.4GHz: 574 Mbps; 5.8GHz: 2400Mbps ；.
10.Antenna gain: 4*2400-2500MHz/5150-5850MHz：2.3dBi/3.5dBi；
11.Power parameters ：Type-C 5V/3A power adapter ；
12.RST:Long press for 6 seconds to reset and restore factory settings ；.
13.Maximum power consumption :13W
14.MTBF： > 250000H
15.Installation method ：Desktop routing ；
16.Protection class ：IP31
17.Product Size ：Plastic case; Dimensions: 123.4mm*88.7mm*34mm
18.Indicator light ：tri-color light
19.Environment ：Operating temperature: 0°C ~ 40'C; Storage Temperature: -40°C ~ 70°C
20.Operating humidity: 10% ~ 90%RH non-condensing; Storage humidity: 5% ~ 90%RH non-condensing.

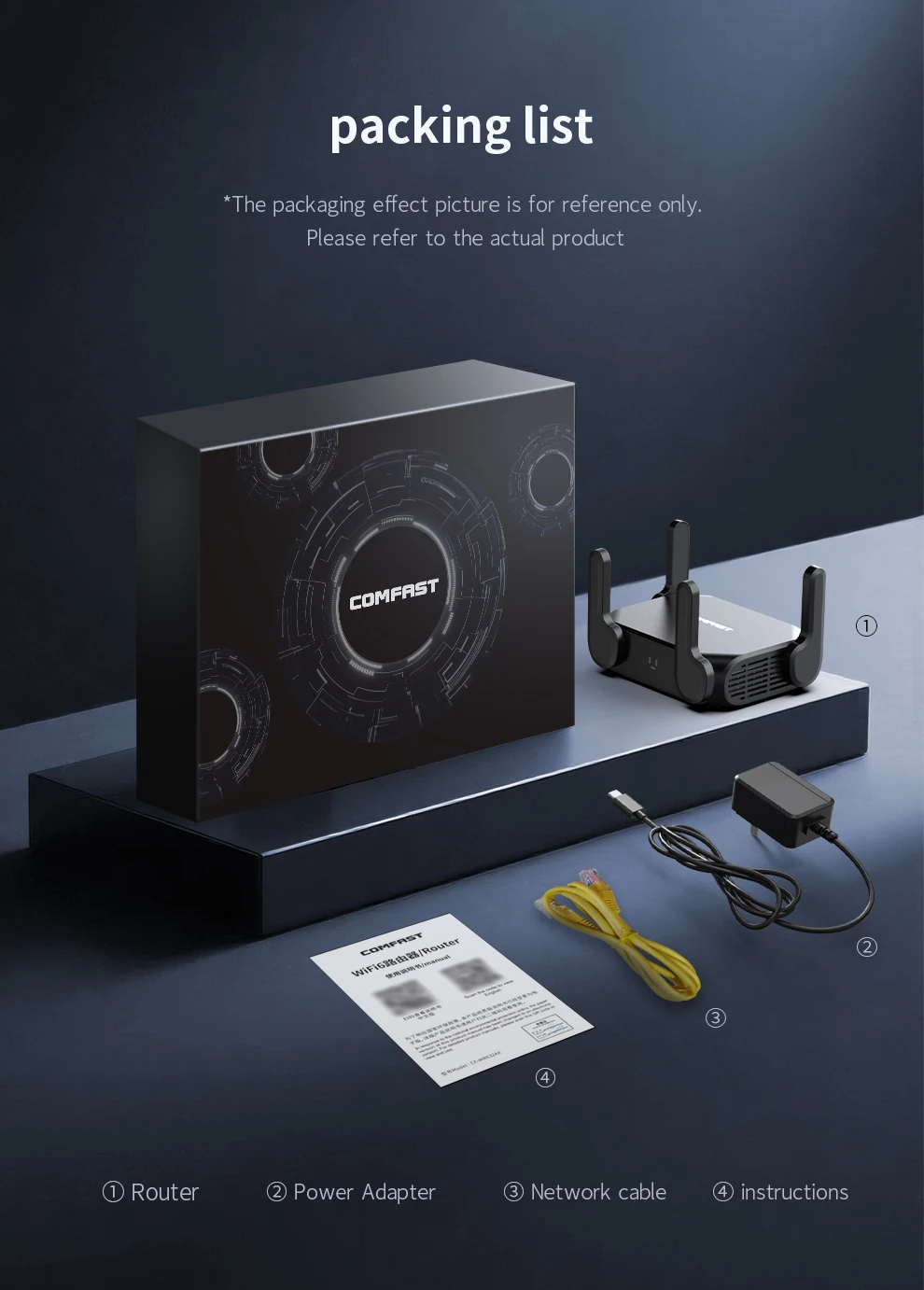

1*AX3000 Mesh Router

1*Power Adapter

1*Network Cable

1*Manual
Still worried about network problems?
The CF-WR632AX can provide solutions to these problems.

1，Upgraded to ultra-gigabit broadband；

2，Business trips and hotel stays；

3，Temporary network setup for exhibition events；

4，Old routers are too troublesome to set up a network；

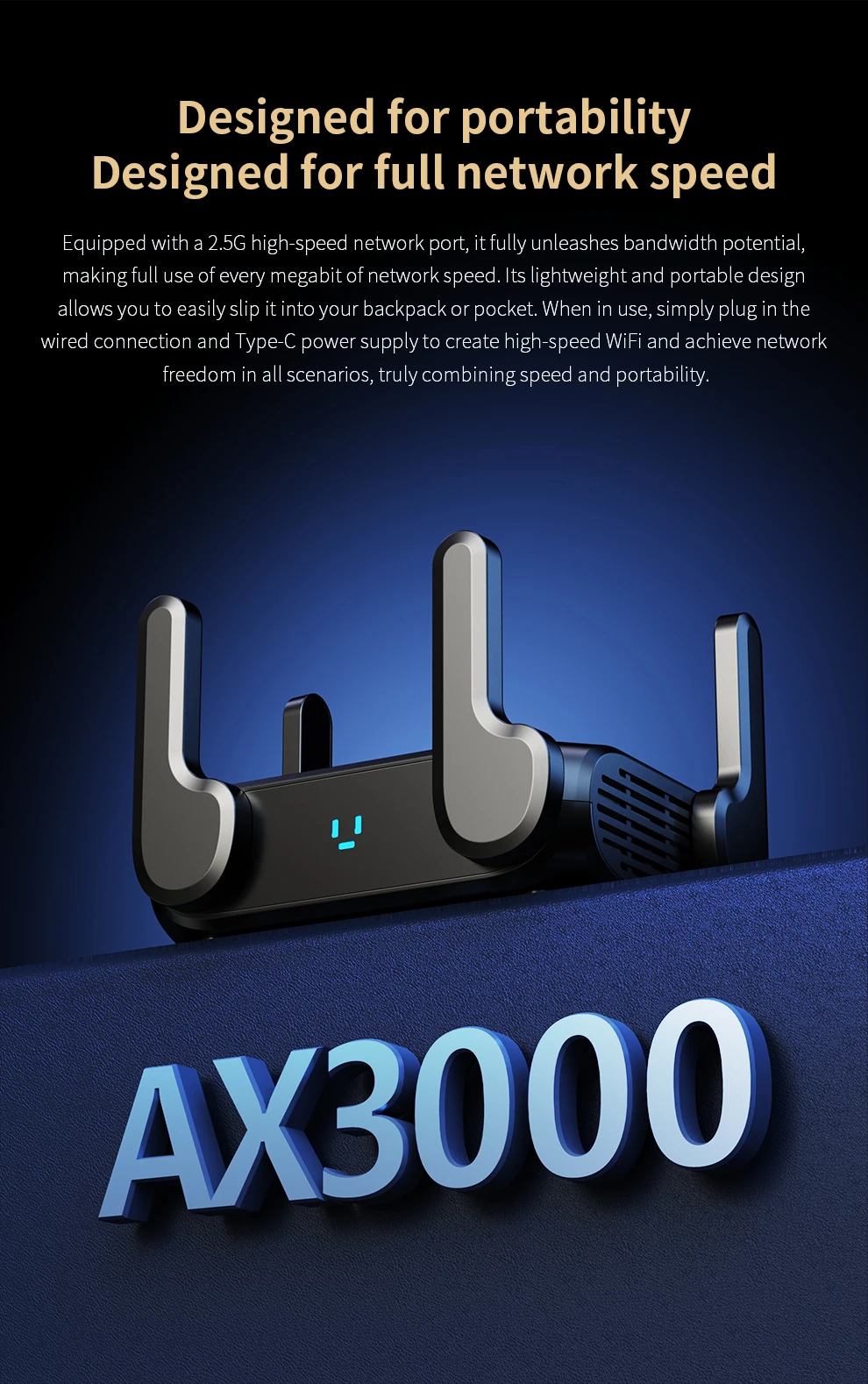

Designed for portability Designed for full network speed

Equipped with a 2.5G high-speed network port, it fully unleashes bandwidth potential, making full use of every megabit of network speed. Its lightweight and portable design allows you to easily slip it into your backpack or pocket. When in use, simply plug in the wired connection and Type-C power supply to create high-speed WiFi and achieve network freedom in all scenarios, truly combining speed and portability.3000Mbps high-speed rate

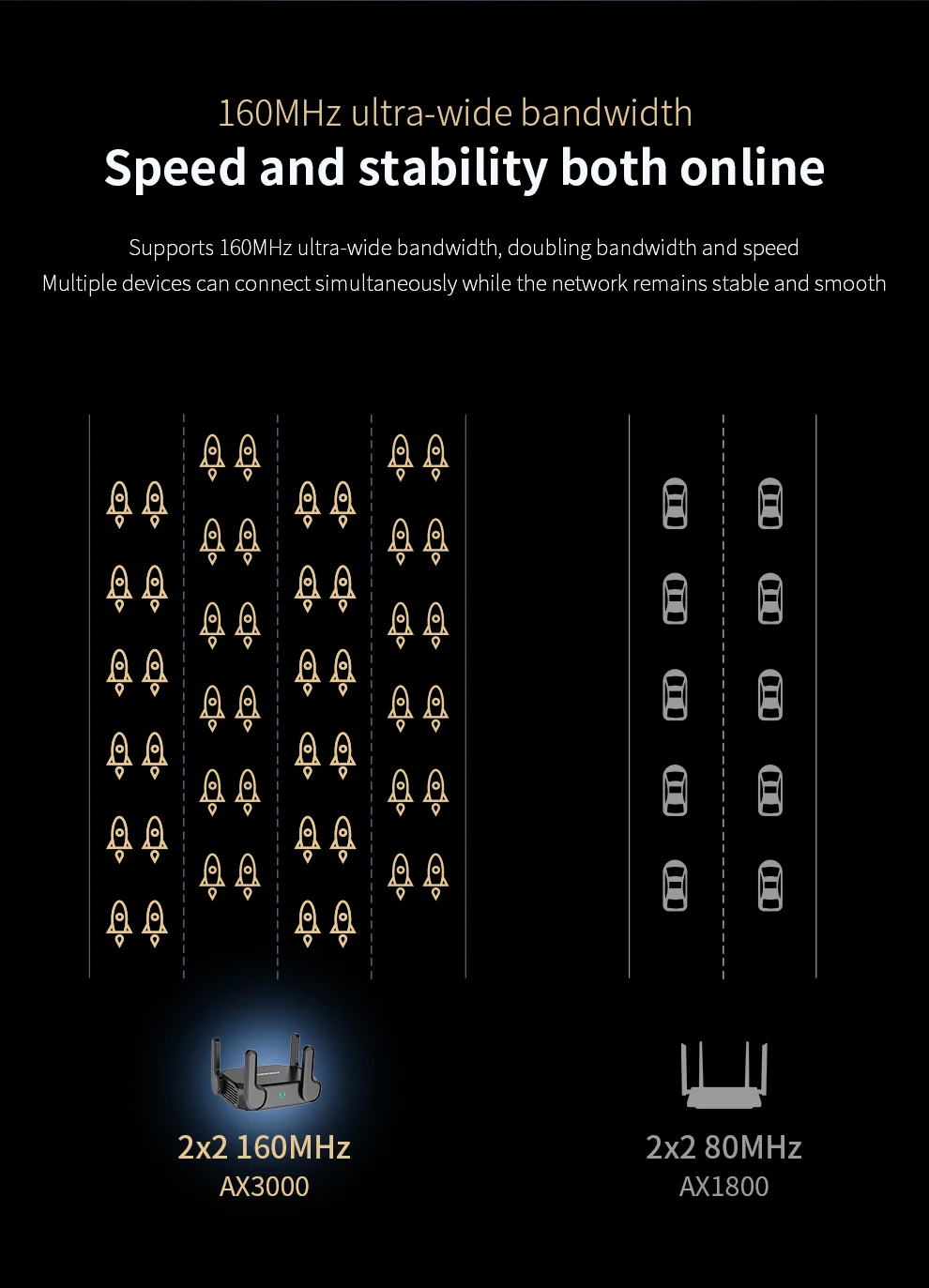

Supports 2.4G/5.8hHz dual bands, with a dual-band concurrent wireless rate of up to2974Mbps, easily meeting the Internet needs of the whole family and providing a faster,more stable and stronger network experience.160MHz ultra-wide bandwidth，Speed and stability both online

Supports 160MHz ultra-wide bandwidth, doubling bandwidth and speed.Multiple devices can connect simultaneously while the network remains stable and smooth.The chips, powerful performance

Three chips work together to significantly improve performance,providing a solid foundation for stable network operation and efficient data transmission.Mesh technology for easy networking

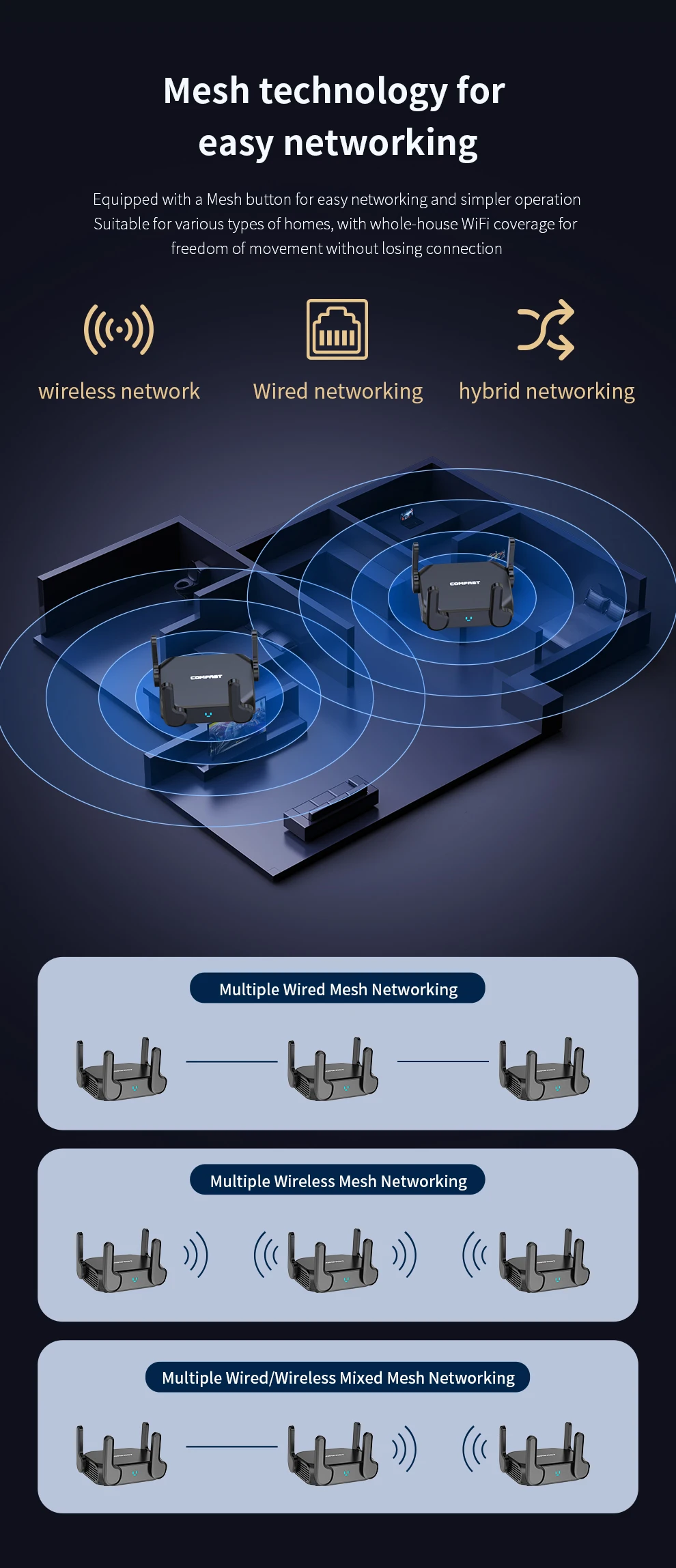

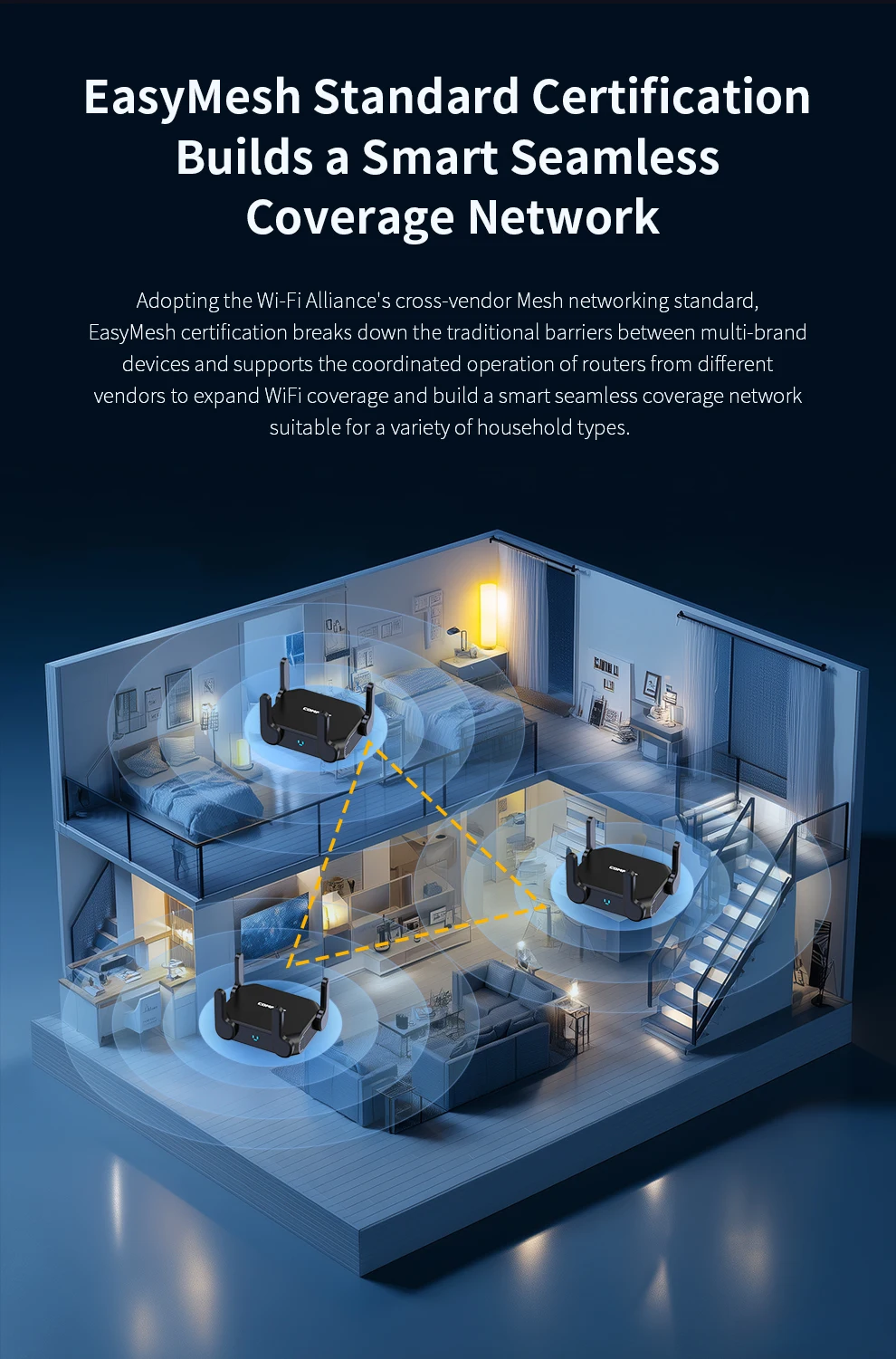

Equipped with a Mesh button for easy networking and simpler operation Suitable for various types of homes, with whole-house WiFi coverage for freedom of movement without losing connection.EasyMesh Standard Certification Builds a Smart Seamless Coverage Network

Adopting the Wi-Fi Alliance's cross-vendor Mesh networking standard,EasyMesh certification breaks down the traditional barriers between multi-brand devices and supports the coordinated operation of routers from different vendors to expand WiFi coverage and build a smart seamless coverage network suitable for a variety of household types.Four-dimensional omnidirectional antenna array Fast and smooth connection across the entire network

Four external high-gain antennas provide rock-solid signal strength, overcoming wall obstructions for stronger transmission and reception capabilities and wider coverage.

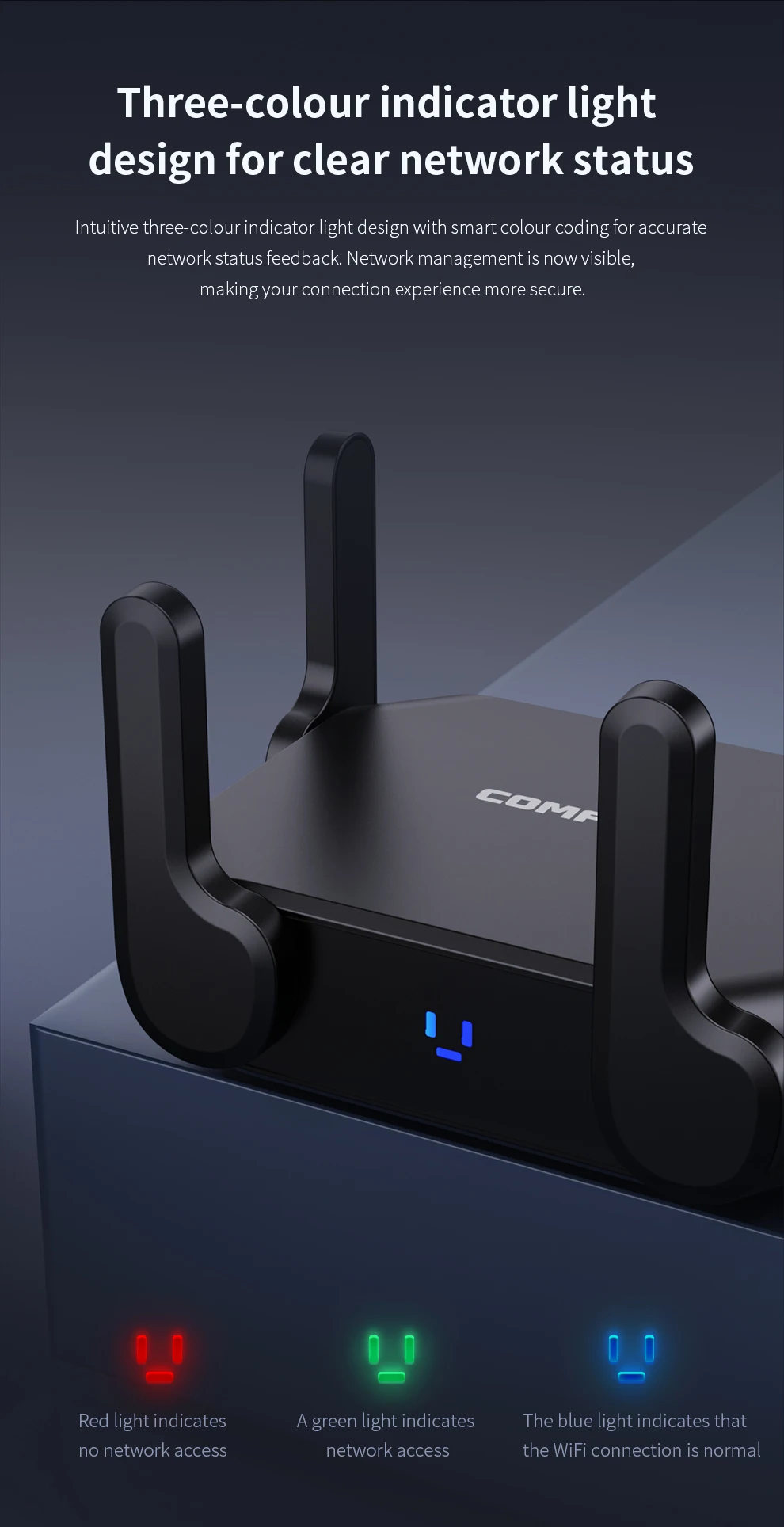

The antennas can be hidden when carrying the device, combining powerful performance with practicality.Three-colour indicator light design for clear network status

Intuitive three-colour indicator light design with smart colour coding for accurate network status feedback. Network management is now visible,making your connection experience more secure.

1,Red light indicates no network access

2,A green light indicates network access

3,The blue light indicates that the WiFi connection is normalMU-MIMO multi-user parallel

Multi-user parallel input and output greatly improves total network throughput and total capacity.

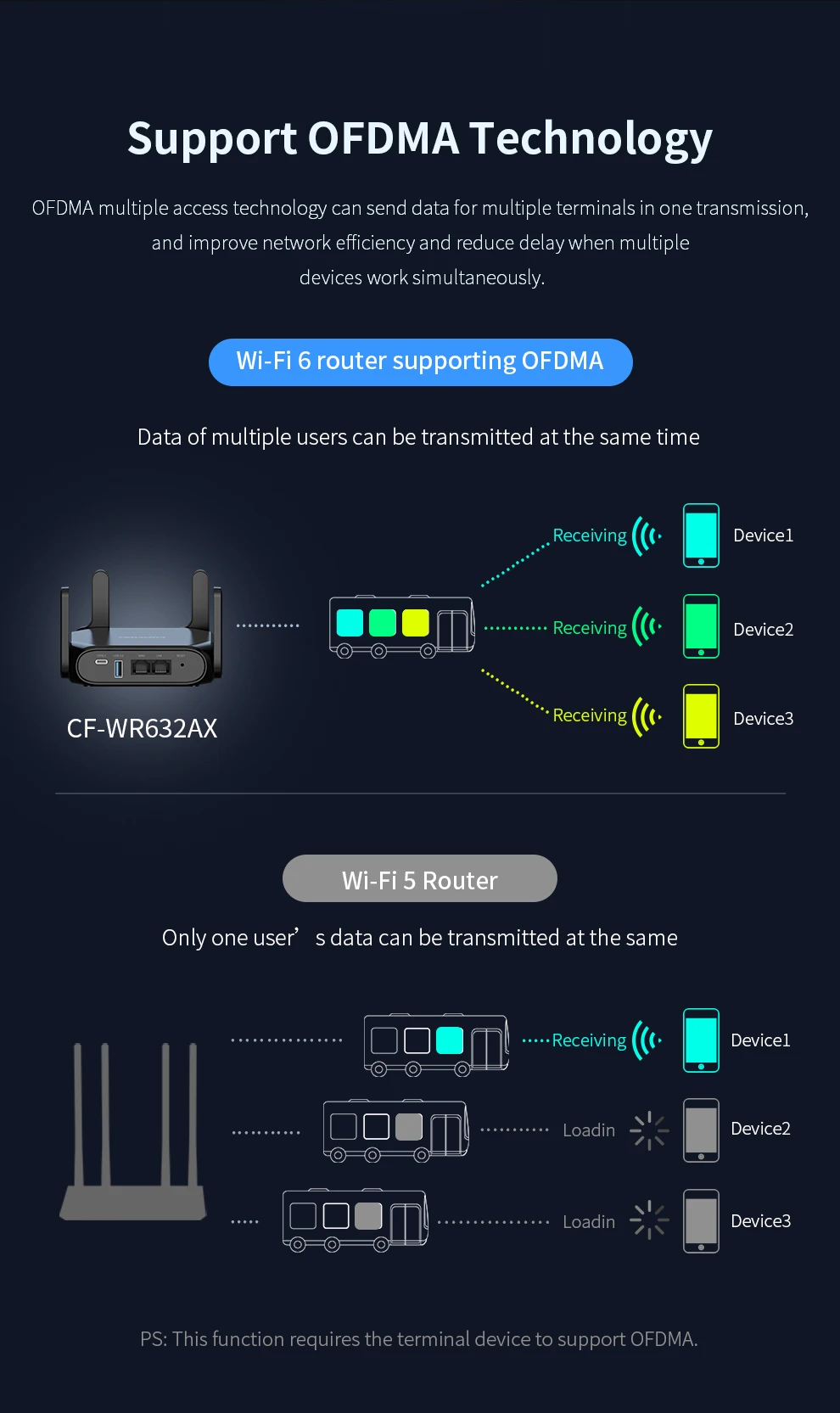

Theoretically, it can increase your internet speed by three times.Support OFDMA Technology

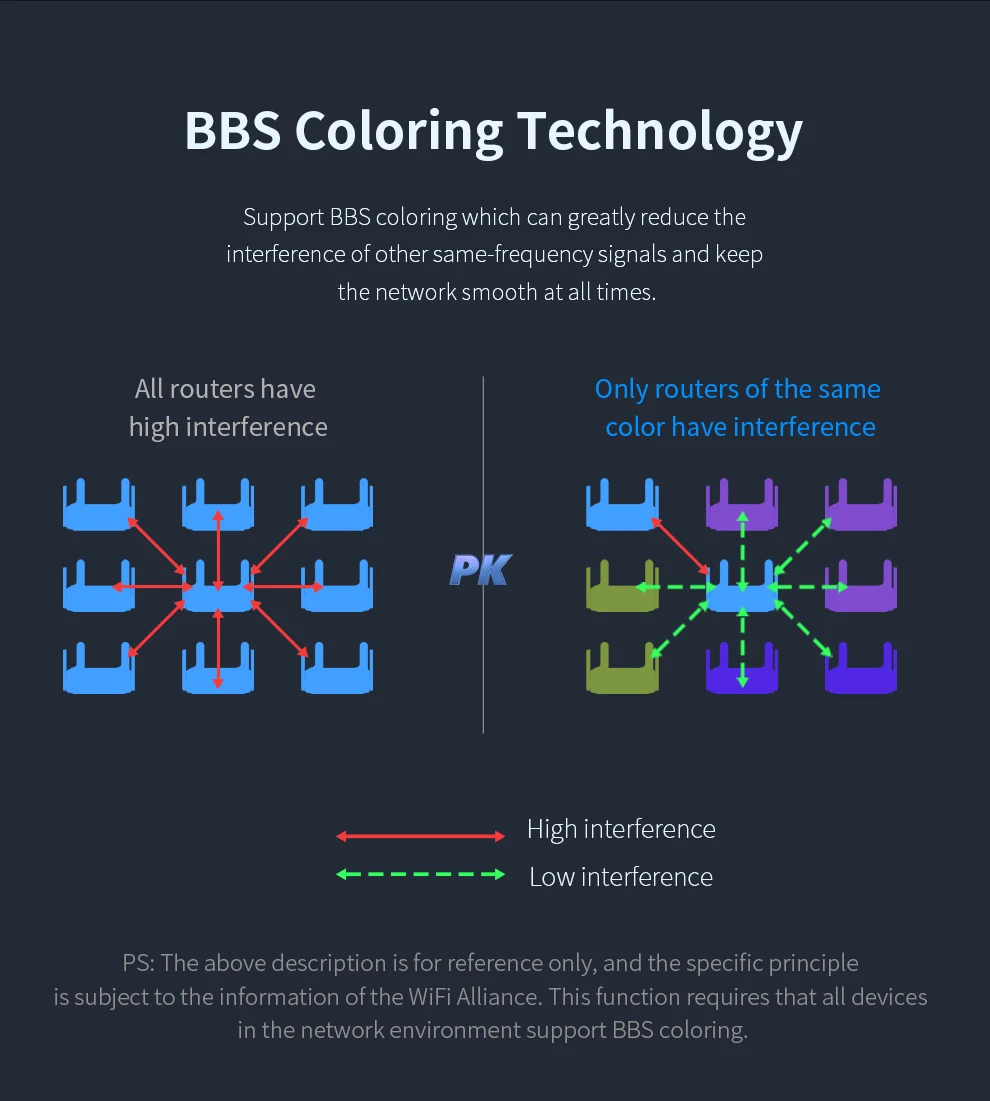

OFDMA multiple access technology can send data for multiple terminals in one transmission,and improve network efficiency and reduce delay when multiple devices work simultaneously.BBS Coloring Technology

Support BBS coloring which can greatly reduce the interference of other same-frequency signals and keep

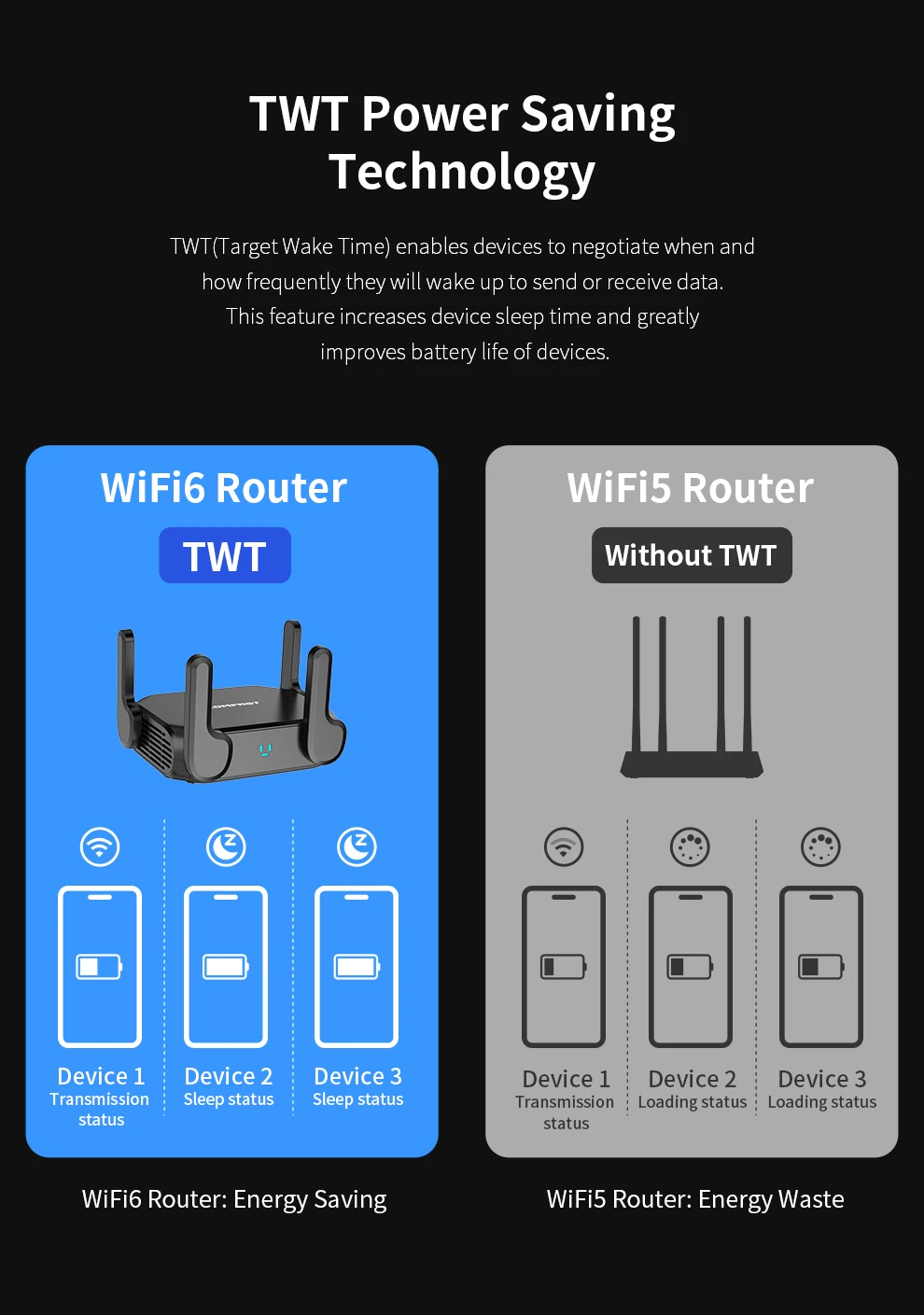

the network smooth at all times.TWT Power Saving Technology

TWT(Target Wake Time) enables devices to negotiate when and how frequently they will wake up to send or receive data. This feature increases device sleep time and greatly improves battery life of devices.Supports IPV6 and is compatible with IPV4

Significantly increased IP address space capacity and router forwarding efficiency smoother gaming, video streaming, and video viewing experience.WPA3 Encryption

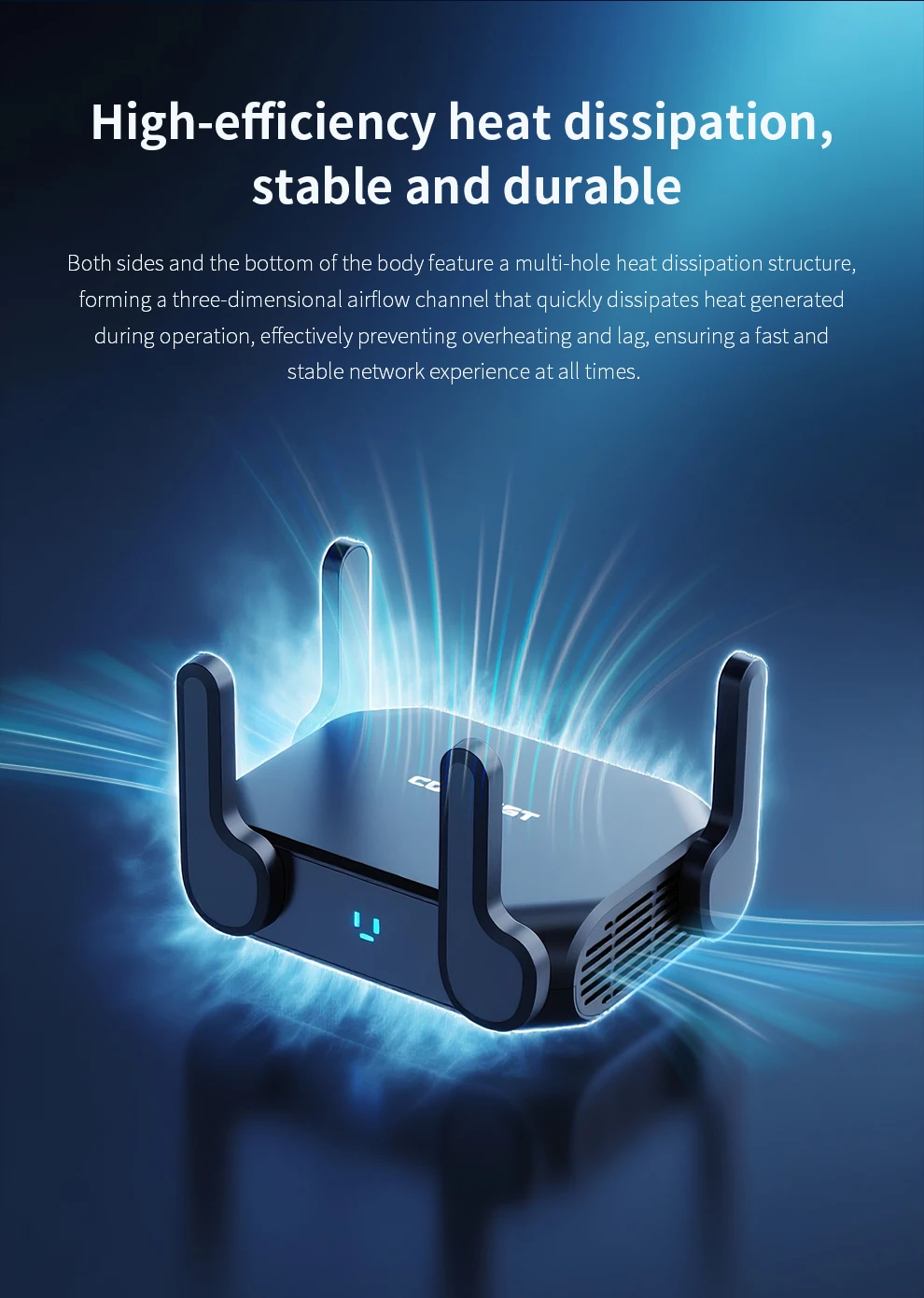

WPA3 for Higher Network Security.High-efficiency heat dissipation,stable and durable

Both sides and the bottom of the body feature a multi-hole heat dissipation structure, forming a three-dimensional airflow channel that quickly dissipates heat generated during operation, effectively preventing overheating and lag, ensuring a fast and stable network experience at all times.
